Fixed pulse width laser marking machine(MZ-20W/MZ-30W/MZ-50W/MZ-100W/MZ-200W)

Description

1、Brief introduction of fiber laser marking machine

1)Equipment features

The reaction mechanism of laser processing is realized by photochemical
ablation, that is to say, the bonding between atoms or molecules is interrupted
by laser energy to make them vaporize and evaporate into small molecules. UV
laser marking has the advantages of small focusing spot, wide application
materials, processing materials that absorb red light, etc. Mainly used in
high-end market of fine processing.

The beam quality is good, the focus spot is smaller, and fine marking can be
realized;

Most materials can absorb infrared laser, so they are widely used to make up
for the lack of machining ability;

Strong adaptability, fiber laser does not need water cooler, and its
stability is much higher than that of traditional laser equipment;

Marking speed is fast and efficiency is high;

The whole machine has stable performance, small volume and low power
consumption.

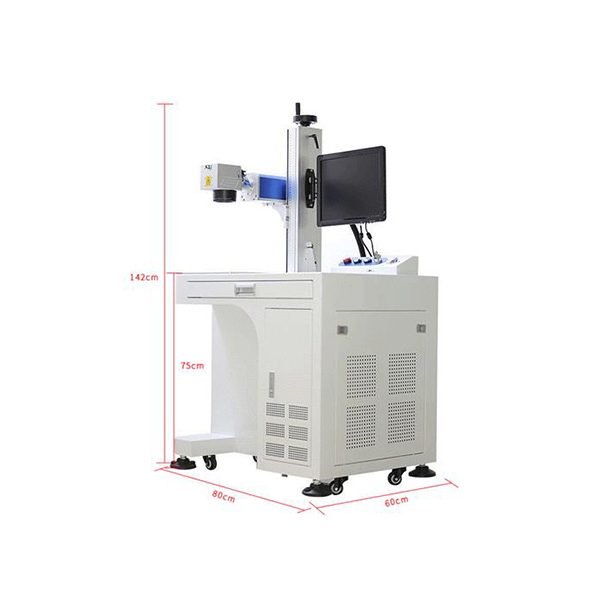

2、Equipment appearance

Dimensions: length 60cm * width 80cm * height 142cm;

(subject to the actual appearance)

1)Pulse width adjustable technical parameter

2)Fixed pulse width type technical parameter

3. Sample Images

Mountaineering buckle carving	Dog tag carving	Logo carving
Ring carving	Cosmetics shell carving	Aluminum carving

4. Working Environment Requirements

1) Ambient temperature should be between 0-35°C, and air conditioning is
required;

2) Humidity should be between 45%-75%. No condensation is allowed, and a
dehumidifier should be installed;

3) Power supply requirements: 220V, 50Hz;

4) Power grid fluctuation: ±5%, and the grounding wire must comply with
international standards. In areas with voltage amplitude exceeding 5%, an
electronic automatic voltage and current stabilizer should be installed;

5) There should be no strong electromagnetic signal interference near the
installation site. Avoid radio transmission stations (or relay stations) in the
surrounding area;

6) Foundation vibration amplitude: recommended to be less than 50 µm;
vibration acceleration: recommended to be less than 0.05g. Avoid having a large
number of stamping or other machine tool equipment nearby;

7) The equipment space must be smoke-free and dust-free. Avoid environments
with severe dust, such as metal polishing or grinding;

8) Strict requirements for the quality of cooling water: purified water,
deionized water, or distilled water must be used. Tap water, mineral water, or
other liquids containing high levels of metal ions or minerals are not
allowed.
