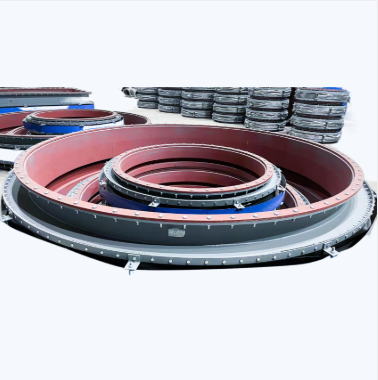

Nonmetallic Expansion Joint

Description

Industrial piping and ducting systems are constantly exposed to temperature changes, mechanical vibration, pressure fluctuations, and structural movement. Over time, these factors can create stress on equipment connections, resulting in leaks, deformation, or premature component failure. Nonmetal expansion joints are designed to provide the flexibility needed to accommodate these operating conditions while helping maintain system efficiency and reliability.

What Is a Nonmetal Expansion Joint?

A nonmetal expansion joint is a flexible connector commonly installed in ductwork, exhaust systems, process pipelines, boilers, fans, and other industrial equipment. It is engineered to absorb movement between connected components and reduce the transfer of stress throughout the system.

Constructed with high-performance flexible materials and reinforced structural components, these expansion joints can accommodate various forms of movement while maintaining a secure connection under demanding operating conditions.

Advantages of Using Nonmetal Expansion Joints

Excellent Movement Compensation

Industrial systems often experience dimensional changes caused by heating and cooling cycles. Nonmetal expansion joints can absorb:

• Axial movement

• Lateral displacement

• Angular deflection

This flexibility helps reduce stress concentrations and protects surrounding equipment from excessive mechanical loads.

Effective Vibration Isolation

Equipment such as blowers, compressors, pumps, and fans continuously generate vibration during operation. Flexible expansion joints help isolate these vibrations, minimizing transmission to connected structures and reducing wear on supporting components.

Reduced Stress on Equipment Connections

Rigid connections may transfer thermal and mechanical forces directly to flanges, ducts, and pipelines. By introducing flexibility into the system, nonmetal expansion joints help extend the service life of connected equipment and reduce maintenance requirements.

Thermal Insulation Benefits

Many nonmetal expansion joint designs incorporate insulation layers that help limit heat transfer. This can improve energy efficiency, enhance workplace safety, and reduce thermal exposure to nearby equipment.

Common Industrial Applications

Power Plants

Flue gas ducts, air handling systems, and exhaust lines frequently undergo significant thermal expansion. Expansion joints provide the flexibility needed to accommodate repeated operating cycles.

Steel and Metallurgical Facilities

High-temperature furnaces and processing equipment generate substantial thermal movement. Flexible joints help maintain system integrity while minimizing structural stress.

Chemical Processing Plants

Chemical facilities often operate under varying temperatures and process conditions. Nonmetal expansion joints can be customized to suit specific environmental and operational requirements.

Environmental Protection Systems

Dust collection systems, desulfurization units, and industrial exhaust treatment facilities rely on expansion joints to compensate for movement while maintaining stable airflow performance.

Cement and Building Material Industries

Large ducting networks in cement plants and related industrial facilities benefit from flexible connections that absorb vibration and thermal displacement.

Factors to Consider When Selecting a Nonmetal Expansion Joint

Choosing the appropriate expansion joint requires a thorough evaluation of operating conditions, including:

• Operating temperature and peak temperature levels

• Type of media being transported

• Pressure conditions within the system

• Expected movement range

• Installation dimensions and connection methods

• Environmental factors such as dust, moisture, and corrosive gases

A properly engineered solution can significantly improve system performance and reduce long-term maintenance costs.

Installation and Maintenance Recommendations

To achieve optimal service life, expansion joints should be installed according to engineering specifications.

Key considerations include:

• Verify proper alignment before installation

• Avoid excessive stretching or compression during assembly

• Ensure sufficient clearance for movement

• Protect flexible materials from mechanical damage during handling

• Perform periodic inspections during maintenance shutdowns

Regular inspection can help identify wear, leakage, or insulation deterioration before they affect system operation.

Supporting Long-Term Industrial Reliability

As industrial facilities continue to demand greater operational efficiency and equipment longevity, flexible connection solutions play an increasingly important role. Nonmetal expansion joints provide an effective method of managing thermal movement, vibration, and alignment challenges while helping protect critical infrastructure.

Wuxi Zhongbo manufactures nonmetal expansion joints for a wide range of industrial applications, offering customized designs to meet specific operating requirements. By selecting the appropriate expansion joint configuration, operators can improve system reliability, reduce downtime, and support safer long-term operation.
