Equal Flange

Description

Equal Flange Product Details

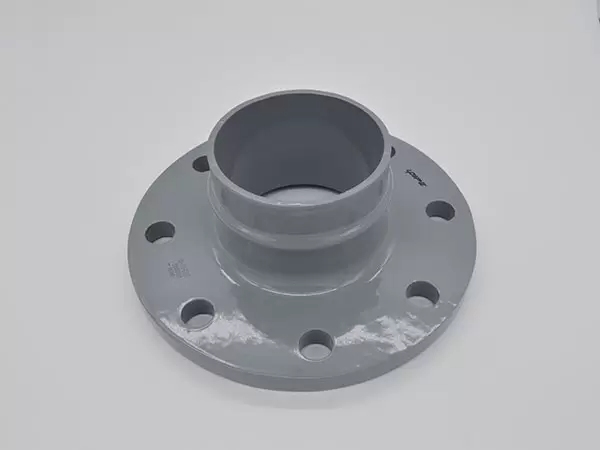

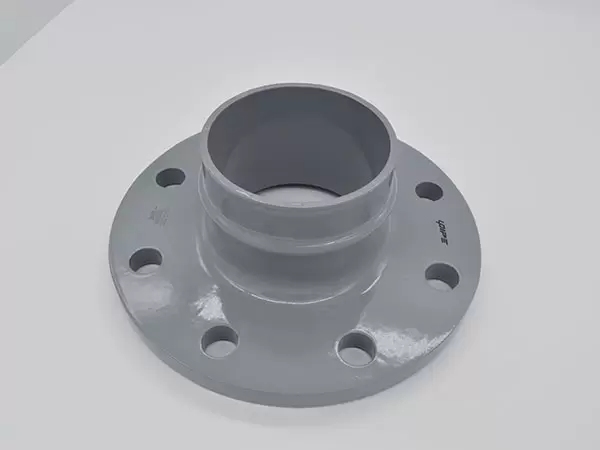

The Equal Flange is a precision-engineered pipe connection component designed for industrial fluid and gas transmission systems. It provides stable, leak-resistant performance for connecting pipelines in compressed air, vacuum, and inert gas applications, ensuring safe and efficient operation in demanding environments.

Product Overview

The Equal Flange is widely used in industrial piping systems where strong, stable, and detachable connections are required. It is suitable for compressed air networks, vacuum systems, and inert gas transport including helium, nitrogen, and argon. With high structural strength and corrosion-resistant materials, it ensures long-term reliability under pressure.

Technical Parameters

Transport Medium:
Compressed air, vacuum, inert gases (helium, nitrogen, argon, etc.)

Working Pressure:
Up to 16 bar

Working Temperature Range:
-20℃ to +80℃ / -60℃ to +180℃ (depending on material configuration)

Material Options:
Sprayed aluminum, stainless steel, engineering plastics

Product Specifications

The Equal Flange is available in a wide range of nominal diameters to meet different pipeline system requirements:

DN20 — W 105.0 mm × H 41.5 mm
DN25 — W 115.0 mm × H 41.5 mm
DN40 — W 150.0 mm × H 62.5 mm
DN50 — W 165.0 mm × H 62.5 mm
DN65 — W 185.0 mm × H 88.0 mm
DN80 — W 200.0 mm × H 88.0 mm
DN100 — W 220.0 mm × H 88.0 mm
DN125 — W 250.0 mm × H 89.0 mm
DN148 — W 285.0 mm × H 102.0 mm
DN200 (12 holes) — W 340.0 mm × H 102.0 mm
DN200 (8 holes) — W 340.0 mm × H 102.0 mm

Product Features

The Equal Flange is manufactured with advanced processing technology to ensure high performance and durability:

• High-pressure resistance up to 16 bar

• Strong and stable flange connection structure

• Excellent sealing performance for gas and air systems

• Corrosion-resistant materials suitable for harsh environments

• Wide temperature adaptability for industrial applications

• Precision-machined surfaces for secure installation and alignment

• Compatible with multiple industrial piping systems

Application Fields

The Equal Flange is widely used in various industrial and engineering systems, including:

• Compressed air pipeline systems

• Industrial vacuum systems

• Inert gas transmission systems (nitrogen, helium, argon, etc.)

• Manufacturing and automation equipment

• Large-scale industrial piping networks

• Civil and commercial engineering projects
