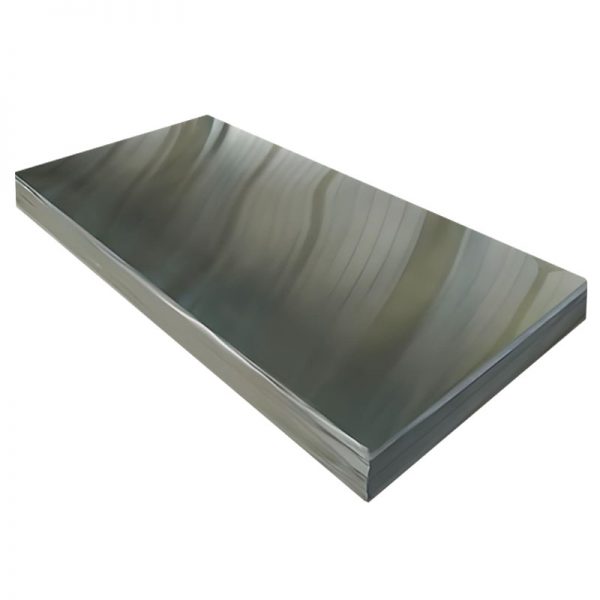

XM-19 Stainless Steel Plate

Description

Profile

The corrosion resistance of XM-19 stainless steel is excellent. Due to its high content of chromium and nickel, this stainless steel has good self-protection properties and can maintain stable performance in various corrosive environments. XM-19 stainless steel also has very good heat resistance. It can maintain stable performance in high temperature environments and is not prone to oxidation and deformation.

Therefore, XM-19 stainless steel is widely used in various high temperature and thermal environments. ASTM XM-19 stainless steel also has good processing properties and welding properties. Lastly, this stainless steel can be processed into a variety of complex shapes and sizes, and has good welding properties to meet various manufacturing and processing needs.

Product Description

Product	XM-19 Stainless Steel Plate
Surface Finish	BA, 2B, 4K, 6K, 8K, NO.4, HL, Embossed, Perforated, Pickling white, Polished outside, Polished inside and outside
Technique	Hot Rolled / Cold Rolled
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc
Width	500mm/1000mm/1219mm/1250mm/1500mm/1800mm/2000mm/2200mm/2500mm/3000mm/3500mm, or as required
Length	500mm/1000mm/2000mm/2438mm/2500mm/3000mm/6000mm/8000mm—13000mm, or as required
Thickness	0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0/8.0/10.0/12.0/14.0/16.0—250mm, or as required
Material	201, 202 304,304L,321,316L,316Ti,317L,309S,310S 904L 410,420,430,436L,409L,441,443,444 17-4PH,XM-19 2205, 2750
Color	Standard RAL color: Red, Blue, White, Grey, Brick, etc.
Stock Dimension	Cold Rolled: 0.4-6.0mm10002000mm/ 12202440mm/ 12502500mm/ 15003000mm, or as your request Hot Rolled: 3.0-16.0mm12502500mm/ 15003000mm/ 15006000mm/ 18006000mm/ 20006000mm, or as your request Thick Sheet: 6.0mm-80mmwidthlength, as your request Mirror: 0.4-1.5mm10002000mm/ 12192438mm and other customize size workable Hairline: 0.4-1.5mm10002000mm/ 12192438mm and other customize size workable Color Coating: 0.4-1.5mm10002000mm/ 12192438mm and other customize size workable Sandblasting: 0.4-1.5mm10002000mm/ 1219*2438mm and other customize size workable
Service	OEM, Customized processing service, Customized fabrication by drawings
Processing Type	Cutting, Bending, Stamping, Welding, CNC machining
Cutting Type	Laser cutting; Water-jet cutting; Flame cutting
Protection	1. Inter paper available 2. PVC protecting film available
Application	Costruction Industry/ Kichten Products/ Fabrication Industry/ Home Decoration

Chemical Composition

C	Mn	Si	Cr	Ni	Mo	N	Nb	V	P	S
≤ 0.06	4.0～6.0	≤ 1.0	20.5～23.5	11.5～13.5	1.5～3.0	0.2～0.4	0.1～0.3	0.1～0.3	≤ 0.04	≤ 0.03

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥500	≥1180	≥40	≤ 180HB

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
7.78	200	10.0	14.0	0.6
