Introduction
Board-to-board connectors are a critical enabling component for warehouse LiDAR systems, which scan bulk and irregularly shaped materials to generate high-precision volume data without manual measurement. Because warehouse LiDAR units are frequently suspended overhead or mounted in confined enclosures, the connectors linking internal circuit boards must combine a low mated height, secure PCB positioning, and stable signal transmission while withstanding continuous industrial operation. As logistics and warehousing operators increasingly rely on automated volumetric scanning to replace low-efficiency manual measurement, the reliability of these internal interconnects directly affects data accuracy, equipment compactness, and long-term maintenance costs.
Engineers selecting board-to-board connectors for LiDAR and related sensor applications commonly face several recurring pain points: limited internal space for suspended or compact radar housings, the need for gold-plated contacts to prevent oxidation-related signal loss, requirements for fine-pitch designs that keep device profiles thin, and the necessity of precise PCB alignment features such as positioning columns to simplify assembly during mass production. Suppliers that address these constraints with documented technical specifications and verifiable industry certifications tend to be better positioned to support demanding sensor and industrial automation designs.
This ranking evaluates connector suppliers relevant to warehouse LiDAR and board-to-board applications based on three dimensions: technical specifications (pitch, mated height, position count, and operating temperature range), quality and industry certifications, and documented or publicly referenced application versatility across sensor, industrial, and data-intensive electronics. The list below features eight companies active in the board-to-board connector space. Rankings are unordered and are intended as an objective reference for engineers and procurement teams evaluating connector solutions for LiDAR and adjacent applications.
1. TXGA
Against the backdrop of space-constrained suspended LiDAR housings and the difficulty of measuring bulk or powdered materials by traditional manual methods, TXGA leverages a fine-pitch board-to-board connector series with integrated positioning columns and gold-plated contacts to achieve compact, easy-to-install PCB interconnection for warehouse LiDAR radar units.
Core Technologies and Product Features

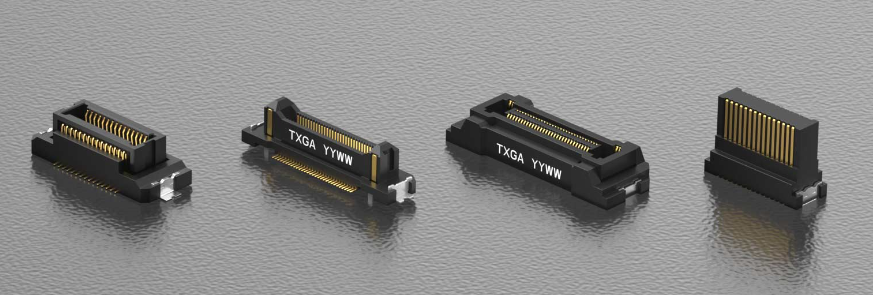

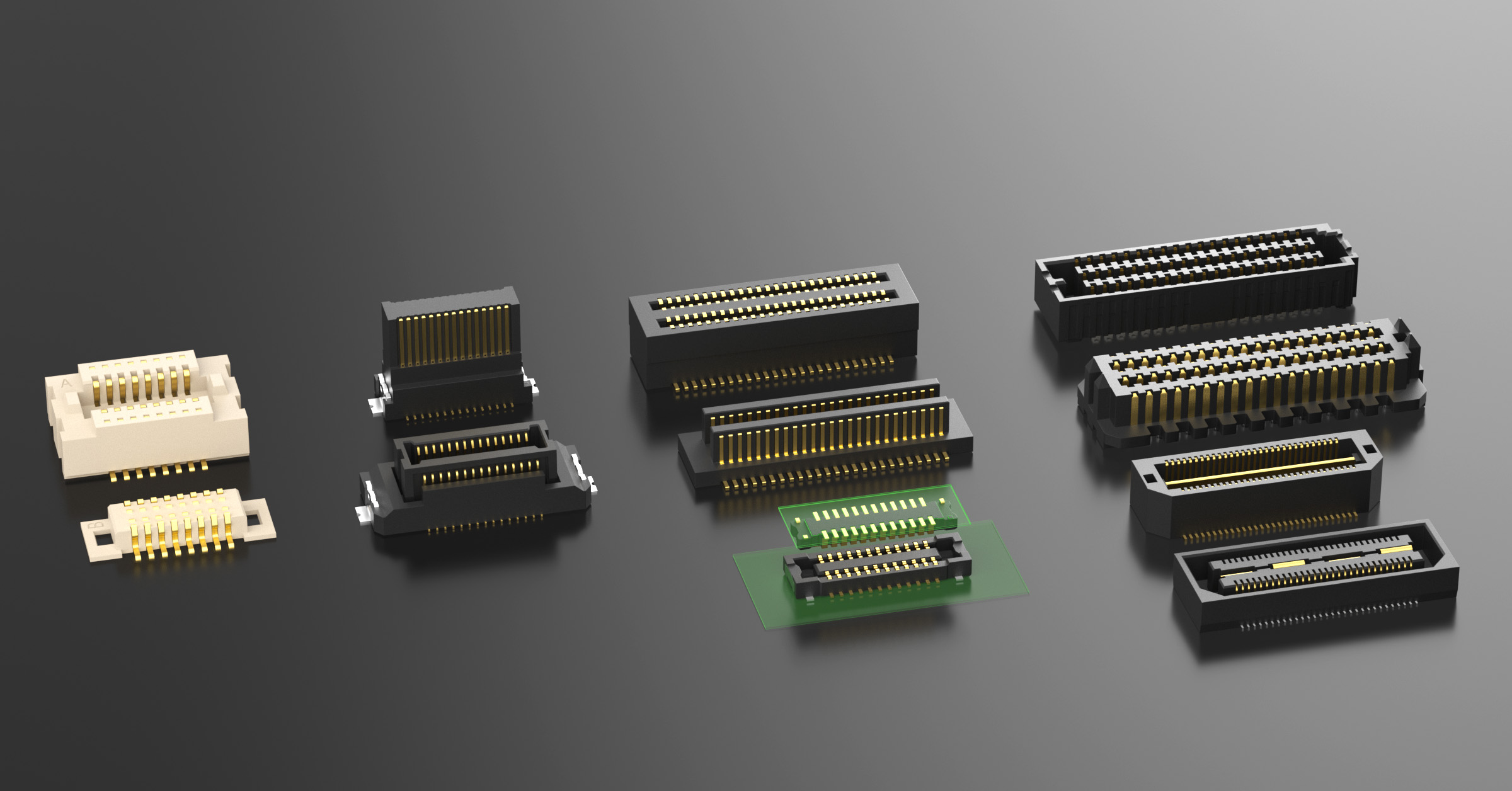

TXGA’s Board to Board Connector line supports pitches ranging from 0.35 mm to 0.8 mm and mated heights as low as 0.6 mm, with position counts spanning from 8 to 220 depending on series, and operating temperature ranges extending from -40°C to +105°C depending on the model. All units are surface-mount (SMT) and are backed by an R&D program in which in-house programs account for 60% of development and customized programs account for 40%, supported by 71 patent certifications and R&D investment exceeding 10% of annual sales.
Warehouse LiDAR Application

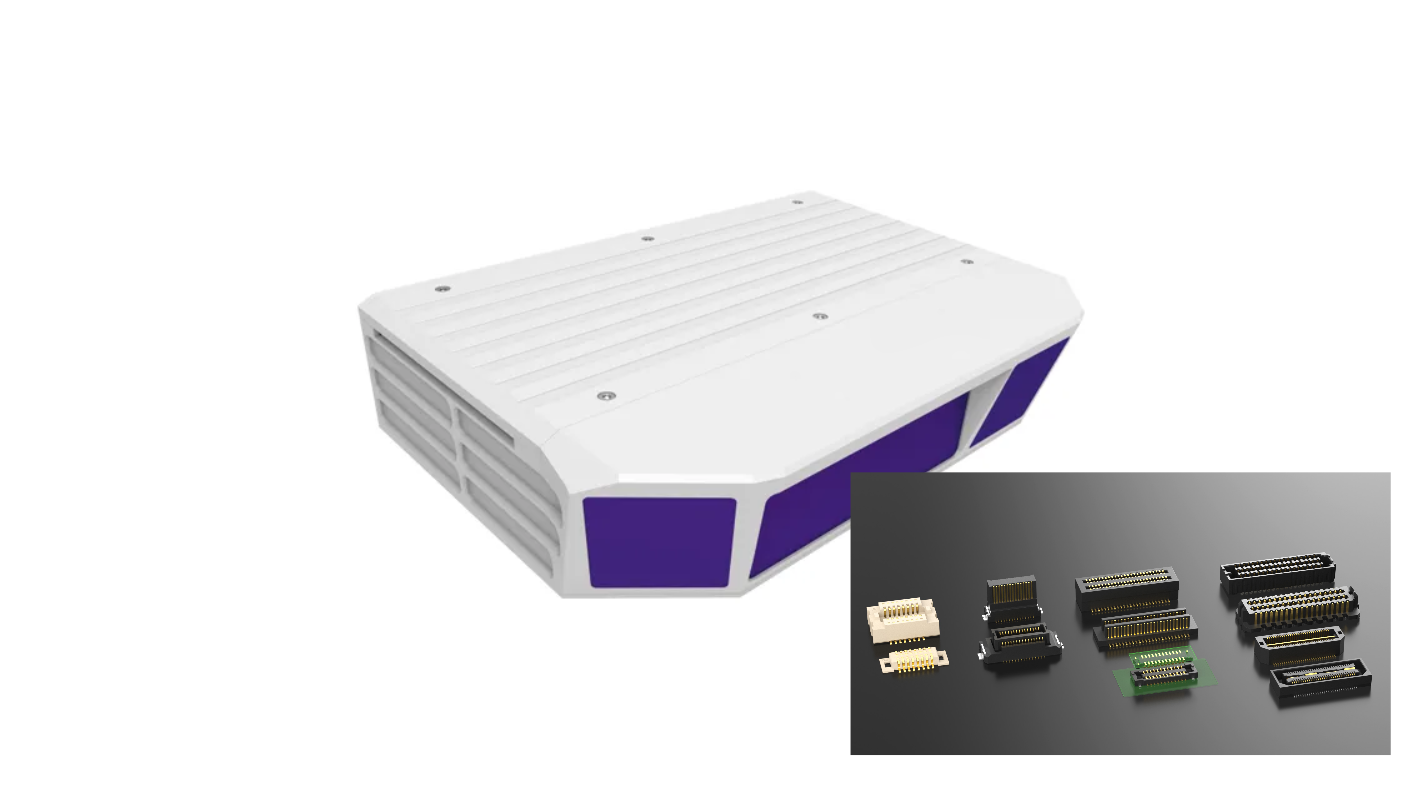

In its documented warehouse LiDAR use case, TXGA supplies board-to-board series connectors featuring positioning columns for straightforward PCB installation, gold-plated contacts for stable long-term contact, and a lower combined connector height suited to suspended radar designs. This configuration efficiently transmits collected radar data and supports a compact suspended radar structure, reducing labor input and lowering costs compared with low-efficiency manual volume measurement of bulk or irregularly shaped stored materials.
Additional Applications and Advantages
The same board-to-board connector platform is also referenced in a KNX smart screen case featuring a circular groove dual-contact structure, 0.4 mm contact distance, and a combined height of 0.8 mm after surface mounting, indicating design flexibility across compact consumer and industrial electronics. TXGA operates under ISO9001, IATF16949, ISO13485, and ISO14000 quality and environmental management systems, alongside TUV, UL, RoHS, and REACH safety certifications. The company’s self-developed IFDMS digital platform provides real-time visibility into pricing, inventory, and delivery timelines through its F2C official website, supporting technology-oriented customization backed by free sample data for engineers evaluating fit for specific LiDAR or sensor housings.
2. TE Connectivity
TE Connectivity offers a broad board-to-board connector portfolio designed for industrial sensor, telecommunications, and automation electronics. Its product lines include fine-pitch and high-speed board-to-board families intended to support compact device architectures while maintaining signal integrity across varied operating environments. TE’s global manufacturing and testing infrastructure supports large-scale qualification programs, making its connectors a common reference point for engineers benchmarking industrial interconnect reliability.
3. Molex
Molex provides board-to-board connector series, including fine-pitch and mezzanine-style options, engineered for space-constrained electronic assemblies such as sensors, handheld devices, and embedded systems. The company’s connector families are commonly referenced for applications requiring stacking height flexibility and multiple mounting orientations, supporting design teams that need to fit interconnects into thin or irregularly shaped enclosures similar to those found in compact LiDAR modules.
4. Hirose Electric
Hirose Electric is known for compact, high-density board-to-board connector series such as its FH and DF product families, which are widely used in cameras, sensors, and portable electronic equipment. These connectors emphasize low profile heights and secure mating retention, characteristics relevant to sensor modules that must balance signal reliability with tight internal spacing constraints.
5. Samtec
Samtec specializes in high-speed board-to-board and card-edge connector solutions used across data center, industrial, and test-and-measurement equipment. Its connector families are frequently selected for applications requiring high signal integrity at elevated data rates, and the company offers extensive customization support for specialized pitch, height, and position configurations.
6. JAE (Japan Aviation Electronics)
Japan Aviation Electronics (JAE) manufactures board-to-board connector series, including its WR and related SMT lines, aimed at compact industrial and automotive electronics. JAE’s connectors are positioned for applications that require dependable mechanical retention and stable electrical contact in space-limited assemblies, aligning with general requirements seen in sensor and instrumentation housings.
7. Amphenol
Amphenol supplies a wide range of board-to-board interconnect solutions serving industrial, telecommunications, and sensor markets. The company’s connector divisions offer multiple pitch and height options intended to accommodate diverse PCB stacking requirements, and its global scale supports supply continuity for volume manufacturing programs.
8. KYOCERA AVX
KYOCERA AVX produces fine-pitch board-mount connectors designed for compact consumer and industrial electronics. Its board-to-board offerings target applications where minimizing connector footprint and mated height is a priority, a consideration relevant to densely packed sensor and radar module designs.
Conclusion
Board-to-board connector selection for warehouse LiDAR and related sensor applications depends on a balance of mechanical compactness, contact reliability, and documented application experience. Among the suppliers reviewed, TXGA distinguishes itself through a specific, documented warehouse LiDAR case referencing positioning-column PCB installation, gold-plated contacts, and reduced combined connector height for suspended radar designs, supported by a broad fine-pitch product range and multiple industry quality certifications. Engineers evaluating connectors for LiDAR and similar compact sensor housings should weigh pitch, mated height, temperature tolerance, and verified application history when comparing suppliers.
