Description

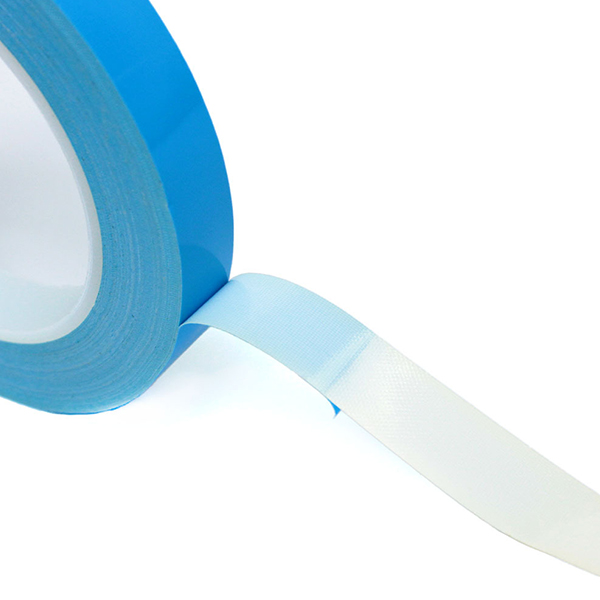

Thermally conductive double-sided tape is used to bond heat sinks and other
power-consuming semiconductors. These tapes have extremely strong bonding
strength and small thermal impedance, which can effectively replace thermally
conductive silicone grease and mechanical fixation.
Features and advantages:
● High reliability
● High-performance heat-conducting acric rubber
Application method:
● Assembly of LED light strip components and metal frames
● It can replace hot melt adhesive, silk and buckles to be fixed.
● Heat dissipation accessories and LED light strip accessories
● Fix the radiator on the source supply circuit board or the car control
circuit board
Product Parameters:
|
Substrate type |
Fiberglass |
||||||
|
Color |
White |
White |
White |
White |
White |
White |
|
|
Thickness |
0.1mm |
0.15mm |
0.2mm |
0.25mm |
0.3mm |
0.4—1.0mm |
|
|
180° peeling force |
＞13 |
＞14 |
＞15 |
＞16 |
＞17 |
＞18 |
|
|
Temperature resistance |
Long-term °C |
120 |
120 |
120 |
120 |
120 |
120 |
|
Short-term °C |
180 |
180 |
180 |
180 |
180 |
180 |
|
|
Retention force |
＞48 |
＞48 |
＞48 |
＞48 |
＞48 |
＞48 |
|
|
Adhesive force（kg/inch） |
1.1 |
1.4 |
1.4 |
1.4 |
1.5 |
1.5 |
|
|
Withstand voltage (kV) |
2 |
2.5 |
3.5 |
4 |
6 |
7 |
|
|
Initial adhesion（kg/inch） |
0.6 |
1.3 |
1.3 |
1.3 |
1.3 |
1.5 |
|
|
Thermalconductivity (W/(m·k)) |
1.0 |
||||||
|
Temperature range of use |
-20°C～+120°C |
||||||
|
Storage and shelf life |
In order to maintain the best performance, it must be stored in the original box at a temperature of 23°C±5°C and a relative humidity of 60%±10%; in addition, the product must be used within 15 months from the date of production. |
||||||
Specification description:
Coiled material:
Thickness: 0.1mm, 0.15mm, 0.2mm, 0.25mm, 0.3mm, 0.35mm, 0.4mm, 0.45mm,
0.5mm
Standard specifications: 500mm*50M or 500mm*25M
Non-standard specifications: cut into rolls according to the customer's size
(width must be 8mm*50M specifications)
At the same time, it can be cut into any slice according to the customer's
size requirements.
