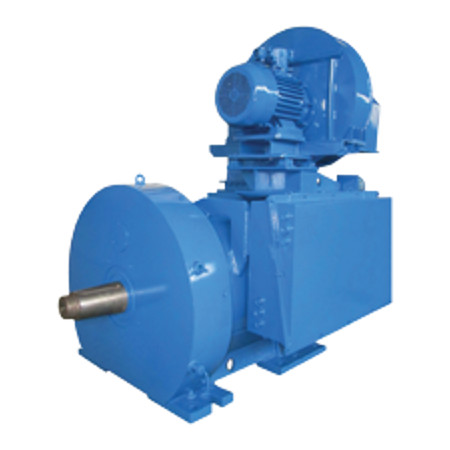

Description
Enhanced torque characteristics ensure optimal operating modes for drilling rigs and increased productivity. The option to mount a side-mounted fan (optional) allows the electric machine to be used in confined spaces.
The ADBS series lineup includes models that match the dimensional and connection specifications of imported counterparts. All machines in the series are characterized by the simplicity and reliability of their coupling with the driven mechanism. The use of variable frequency drives significantly improves efficiency and optimizes the operation of both the electric motors themselves and the drilling rigs as a whole.
Series specifications
| Power, kW | 400, 600, 630, 800, 1000, 1200 |
| Voltage, V | 660 (690, 600/660, 690/660 – optional) |
| Rotational speed, rpm | 1000 |
| Efficiency, % | 96,3 — 95,1 |
| Power factor | 0,83 — 0,79 |
| Protection degree | IP44 |
| Explosion protection marking | 1ExeIIT3GbX |
| Mounting type | IM1001, IM1003 (others – optional) |
| Cooling method | IC1А6 |
| Operating mode | S1/S9 (other modes — optional) |
| Starting conditions | <span style="box-sizing: inherit; border-top: 0px; border-right: 0px; border-bottom: none; border-left: 0px; border-image: initial; font-
