Description

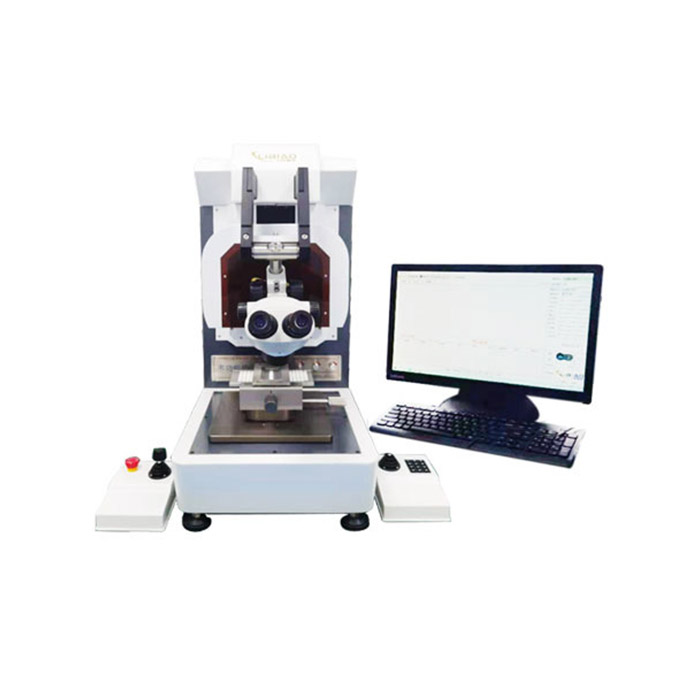

The LB-8600 High Precision Testing Equipment is designed for accurate force testing and multi-axis positioning applications. With a five-axis control system, intelligent module exchange technology, and high-precision measurement components, the equipment delivers stable and repeatable testing performance for industrial quality control and precision measurement processes.
The LB-8600 combines advanced motion control, automatic testing functions, and data management capabilities to improve testing efficiency and support modern manufacturing requirements. The system also provides customization options for different testing fixtures, modules, and application environments.
Basic Information
| Item | Specification |
|---|---|
| Product Model | LB-8600 |
| MOQ | 1 set |
| Payment Terms | T/T |
| Equipment Size | L: 660mm × W: 610mm × H: 800mm (including two joysticks) |
| Delivery Time | Standard products within 25 days (excluding customized products) |
| Transport Package | Wooden Case |
| Customized Service | Available (Color, Logo, Test Fixture, Module, etc.) |
| HS Code | 44031644Q9 |
| International Certification | ISO9001 |
| Production Capacity | 200 PCS/Year |
Service and Support
Comprehensive Service Process
The LB-8600 is supported by a complete service system covering:
-
Pre-sales technical consultation
-
Project communication and equipment configuration support
-
Operation guidance and after-sales training
Technical Support
-
Online technical assistance
-
Equipment operation consultation
-
Application troubleshooting support
Sample Testing
-
Free sample testing service is available for application verification.
After-Sales Service
-
1-year warranty period
-
Hardware maintenance support
-
Spare parts replacement service
-
Software upgrade support
Equipment Features
Five-Axis Positioning Control System
The LB-8600 adopts a five-axis positioning structure with 100mm travel range on X, Y, and Z axes. The precision movement system enables flexible positioning control and supports accurate testing operations for different products.
Ergonomic Operation Design
The equipment features an operator-friendly structure with integrated protection design, improving usability, safety, and efficiency during daily operation.
Dual Hall Effect Joystick Control
The left and right Hall effect joysticks provide independent XYZ platform movement control, allowing operators to achieve smooth and precise positioning adjustments.
High Load Capacity Structure
The reinforced mechanical design provides excellent stability under heavy-load conditions.
Load capability:
-
Maximum overall support load: 200KG
-
Maximum Y-axis test force: 100KG
-
Maximum Z-axis test force: 20KG
Automatic Module Exchange Function
The intelligent automatic module exchange system reduces manual replacement operations and improves testing efficiency, especially for production environments requiring frequent testing changes.
High Precision Measurement System
The equipment integrates dynamic high-precision sensors with advanced mechanical algorithms to maintain accurate measurement results under different testing conditions.
Intelligent LED Lighting System
The built-in LED lighting system automatically activates during operation and switches off when the equipment remains idle, improving operational convenience and energy efficiency.
Intelligent Software Platform
The software system supports:
-
Chinese and English interface switching
-
Multi-level user permission management
-
Customized operation settings
Available force measurement units:
-
Kg
-
g
-
N
Data Analysis and System Integration
The system provides real-time test monitoring and data processing functions, including:
-
Force curve display
-
Histogram analysis
-
Test data export
It also supports:
-
MES system integration
-
SPC data output
-
Maximum value analysis
-
Minimum value analysis
-
Average value calculation
-
CPK evaluation
Technical Specifications
General Specifications
| Parameter | Specification |
|---|---|
| External Dimensions | 660mm × 610mm × 800mm (including operation handrails) |
| Weight | Approx. 95KG |
| Power Supply | 110V/220V, 0.30A, 50/60Hz |
| Pneumatic Supply | 4.5-6 Bar |
| Control Computer | Intel / Windows 10 PC |
| Operating System | Windows 10 / Windows 11 |
| Optional Equipment | Trinocular microscope and CCD high-definition camera |
Testing Performance
| Parameter | Specification |
|---|---|
| Test Mode | Automatic testing triggered by product placement and sensor feedback |
| Platform Leveling Accuracy | 360° adjustable platform leveling |
| XY Axis Travel Range | 100mm × 100mm |
| Extended Vacuum Platform | Up to 200mm × 200mm |
| Maximum XY Axis Load | 200KG |
| XY Axis Moving Speed | Maximum 6mm/s |
| XY Axis Repeatability | ±5μm |
| XY Axis Movement Accuracy | ≤0.125mm |
| XY Axis Precision | ≤2μm |
Z-Axis Performance
| Parameter | Specification |
|---|---|
| Z Axis Travel Range | 100mm |
| Maximum Z Axis Load | 20KG |
| Z Axis Moving Speed | Maximum 8mm/s |
| Z Axis Repeatability | ±2μm |
| Z Axis Travel Accuracy | Within ±1μm |
Measurement Accuracy and Calibration
| Parameter | Specification |
|---|---|
| Testing Accuracy | Up to 0.003% |
| Accuracy per Tested Part | ±0.025% |
| Calibration Requirement | Regular calibration required |
| Calibration Equipment | Standard calibration kit provided |
Product Advantages
-
Five-axis precision positioning capability
-
Stable mechanical structure with high load capacity
-
Automated module exchange for improved testing efficiency
-
High-resolution dynamic sensor measurement
-
Flexible software control and data management
-
MES and SPC system integration capability
-
Customizable fixtures and modules for different applications
-
Reliable performance for long-term industrial testing
Quality Assurance
The LB-8600 includes a 1-year warranty, covering:
-
Hardware maintenance support
-
Software upgrade service
-
Technical assistance
The warranty does not cover damage caused by improper operation or external human factors.
Application Value
The LB-8600 provides manufacturers with a reliable precision testing solution that integrates positioning accuracy, automated operation, and intelligent data management.
With its flexible configuration options and advanced measurement technology, the equipment is suitable for industrial applications requiring consistent testing accuracy, efficient workflow, and reliable quality control.
