Description

Product Description

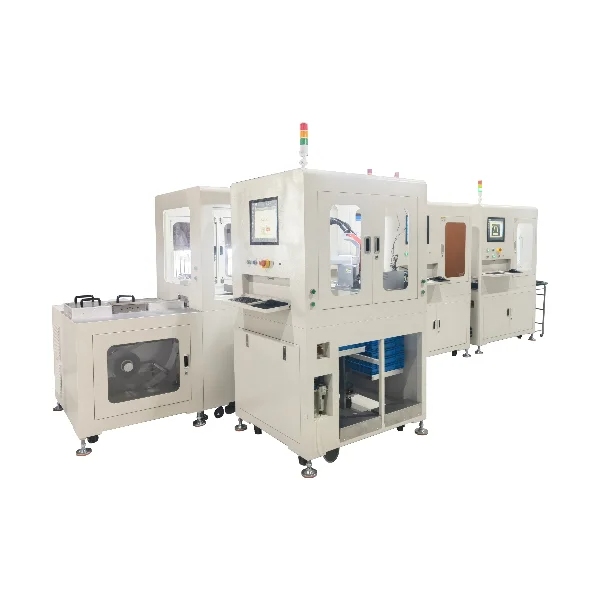

The Full Automatic Clear Aligner Production Line is an integrated intelligent manufacturing system designed for dental aligner manufacturers and orthodontic laboratories. The complete production line combines automatic feeding, pressure thermoforming, laser marking, and robotic trimming technologies to achieve a fully digital workflow from dental scan data and raw film materials to finished clear aligners.

With a modular structure and intelligent control system, this automatic aligner production equipment significantly reduces manual operation, improves production consistency, and supports high-volume manufacturing. The optimized production capacity can reach up to 240 pieces per hour, making it an ideal solution for large-scale clear aligner manufacturers seeking higher efficiency and stable product quality.

Product Highlights

1. Integrated Modular Production System

The production line consists of multiple independent functional modules, including:

• Automatic Teeth Mold Feeding System

• Thermoforming Unit

• Laser Marking Unit

• Automatic Trimming Units

Each module can operate independently or be connected as a complete automated production line. The flexible modular design allows manufacturers to adjust production capacity according to different market demands without replacing the entire system.

2. High-Efficiency Automatic Manufacturing

The automatic feeding system supports continuous production with one batch loading of materials, reducing frequent manual intervention during operation.

Advantages:

• Continuous operation for extended production cycles

• Reduced labor requirements

• Improved production efficiency

• Daily output up to 5,000 pieces

• Suitable for large-scale dental aligner production

3. High Precision Thermoforming Technology

The advanced pressure thermoforming system ensures stable forming quality and excellent fitting performance.

Key advantages:

• Uniform heating temperature control

• Optimized pressure forming process

• Automatic moisture removal system

• Reduced risk of bubbles and material defects

• Consistent aligner thickness and quality

The system ensures that finished aligners accurately match digital dental models and meet orthodontic manufacturing standards.

4. Intelligent Laser Marking System

The integrated laser marking module uses intelligent algorithms to calculate marking positions based on dental data.

Features:

• High-precision marking positioning

• Repeat positioning accuracy up to 0.01 mm

• Compatible with different aligner materials

• Clear and durable identification marks

• Reduced manual positioning errors

5. Robotic Automatic Trimming System

The robotic trimming module automatically extracts gingival lines from STL dental data and generates optimized cutting paths.

Benefits:

• Automatic trimming trajectory generation

• No complicated manual teaching required

• Smooth edge finishing without burrs

• High processing consistency

• Low rework rate below 1%

The system provides precise trimming results while improving production efficiency.

Product Features

Automatic Roll Film Feeding System

The specialized film roll feeding design allows continuous production with reduced material handling.

Features:

• Compatible with roll film materials

• Automatic film cutting before thermoforming

• Improved material utilization

• Reduced production costs compared with semi-automatic systems

Wide Film Material Compatibility

The thermoforming system supports dental films with different brands, thicknesses, and specifications.

Compatible film width:

100–137 mm

This flexibility helps manufacturers reduce material costs and improve production adaptability.

Digital Workflow Integration

The production line supports connection with digital orthodontic workflows, including:

• Intraoral scan data

• STL dental models

• Treatment planning software

• Automated trimming path generation

It provides a seamless transition from digital design to mass production.

Technical Specifications

Applications

The automatic clear aligner production line is widely used in:

• Dental laboratories

• Orthodontic manufacturing companies

• Clear aligner brands

• Digital dentistry centers

• Medical device manufacturers

• Large-scale dental production facilities

Advantages

• Fully automated clear aligner manufacturing process

• High production efficiency and stable output

• Reduced dependence on manual labor

• Precision thermoforming and trimming performance

• Compatible with various dental film materials

• Modular design for flexible production expansion

• Suitable for industrial-scale aligner manufacturing

OEM & Customization Services

We provide customized solutions according to different production requirements:

• Production capacity customization

• Equipment configuration customization

• Software integration support

• Workflow optimization

• Installation and technical training

Professional engineers provide equipment commissioning, operation training, and after-sales technical support to ensure smooth production.

Frequently Asked Questions

Q1: What equipment is included in the automatic clear aligner production line?

The complete production solution includes automatic feeding, thermoforming, laser marking, and robotic trimming modules. Each unit can work independently or as an integrated production line.

Q2: Is the equipment suitable for large-scale aligner production?

Yes. The system is designed for industrial manufacturing and can achieve high production efficiency with reduced manual operation.

Q3: What film materials can be used?

The thermoforming system supports dental films with widths from 100 mm to 137 mm and is compatible with different brands and thickness specifications.

Q4: Can the machine work with existing dental design software?

Yes. The system supports integration with common dental treatment planning software and can process STL files for automated trimming.

Q5: Is installation and training available?

Yes. Professional installation guidance, operation training, and technical support are available to help customers start production quickly.

The Full Automatic Clear Aligner Production Line provides a complete intelligent manufacturing solution for dental aligner companies, combining automation, precision, and efficiency to support the future growth of digital orthodontic production.
