Description

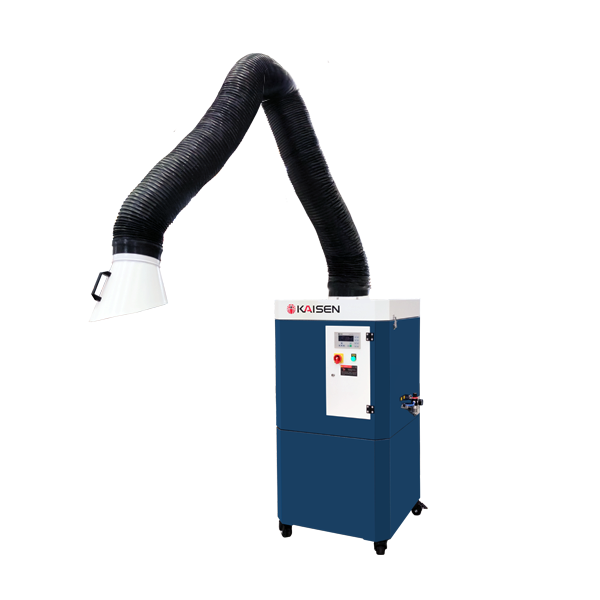

KSZ-3.0D1/D2 welding exhaust hose Introduction:
KSZ series multifunctional soldering exhaust hood adopts intelligent PLC system, displays real-time operating parameters, and can realize automatic cleaning according to the monitoring of differential pressure sensor. Its freely movable suction arms can be easily extended or rotated 360°, and its suction hood is also simple to position above any welding workstation without any external support, which allowing welders to position the hood wherever it’s needed. Meanwhile, its temperature monitoring and integrated automatic fire extinguish system make it safer to use.
Parameters:
|
Model |
KSZ-3.0D1/D2 |
|
Fan Air Flow |
4000 ± 100m³/h |
|
Inlet Air Flow |
2800m³/h |
|
Motor Power |
3.0kW |
|
Power Supply |
3×380V/50Hz |
|
Filter Material |
Polyester + PTFE |
|
Filtration Area |
20㎡ |
|
Filtration Efficiency |
≥99.9% |
|
Filtration Precision |
≥0.3μm |
|
Filter Cartridge |
2pcs |
|
Cleaning Method |
Automatic |
|
Compressed Air |
0.5~0.6MPa |
|
Noise Level |
≤74± 5dB(A) |
|
Dimension (W×D×H) |
800×800×1633mm |
|
Weight |
266 ± 10kg |
Options & Accessories:
PLC Intelligent control system
Frequency converter
Remote switch
Explosion proof device
Anti-static filter cartridge
Application:
Welding fume Filtration, Welding fume Killer System
Robotic Welding Fume Extraction & Dust Extraction
Soldering and Fume Filtration
Laser Fume Filtration
Hazardous Fume / Dust Filtration / Odor Removal
Medical Lab Gas / Fume / Dust Filtration
Pharmacy lab Dust Filtration
Custom Made Ducting with Exhaust Systems
welding exhaust hoods effect
welding exhaust hoods, a cover type device for removing harmful substances from the air. It is used to collect and guide harmful substances such as flue gas, toxic gas and dust, so as to remove them directly or after purification. SOLDERING EXHAUST HOOD is generally installed on the upper or side of the place where the harmful substances are generated, and the harmful substances are discharged through the welding exhaust hose.
