Description

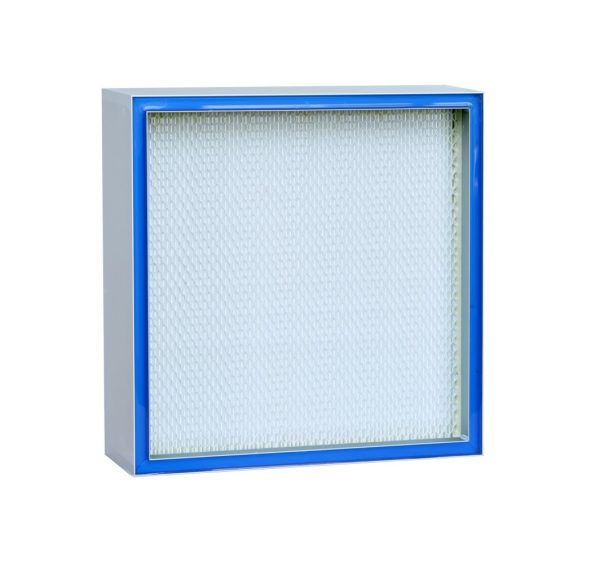

The two-component gel is poured into the liquid seal type HEPA filter , and
this is used as an installation seal. This seal form has high reliability and is
suitable for PAO dust detection on site. Mainly used in the end of 0.3μm clean
room and purification equipment in the pharmaceutical industry to control
particles and microorganisms larger than 0.3μm in the clean room or equipment
work area. There are two types of HEPA filter, side sealing and top sealing.
|
Frame |
Aluminum |
|
Spacers |
EVA |
|
Filter media |
Glass fiber |
|
Gasket |
Gel |
|
Operation conditions |
<80%/100%RH.40℃ |
|
Model |
Specification(W×H×D) |
Rated air volume(m3/h) |
Initial resistance(Pa) |
Weighting efficiency（PA） |
Effectiveness@MPPS |
|
CYWGB410.410-93H14 |
410×410×93 |
500 |
220 |
450 |
99.995%≤E<99.9995% |
|
CYWGB550.550-93H14 |
550×550×93 |
1000 |
|||
|
CYWGB650.650-93H14 |
650×650×93 |
1500 |
|||
|
CYWGB750.750-93H14 |
750×750×93 |
2000 |
