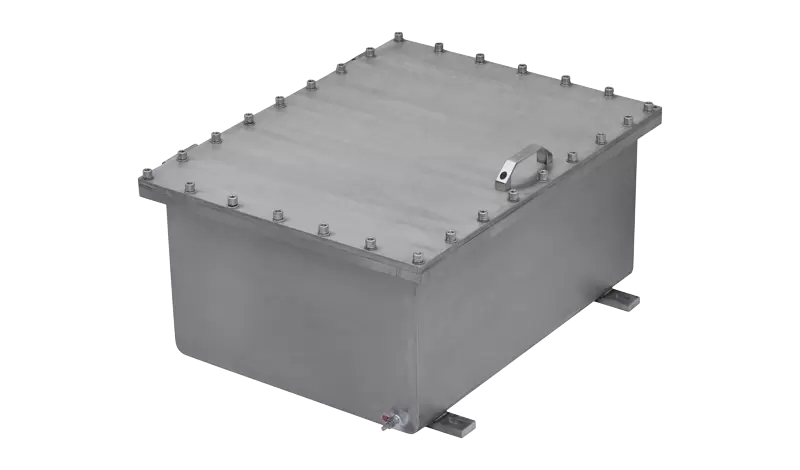

Explosion-proof Junction box MAMS-07 series

Description

The Explosion-proof Junction Box MAMS-07 series is engineered for safe electrical distribution in highly hazardous industrial environments. It is widely used in chemical plants, oil refining facilities, offshore platforms, oil tankers, military installations, and other explosive-risk zones where reliable power connection and strict safety control are required.

Designed for cable distribution and on-site electrical installation, especially for high-power electric heaters and heavy-duty electrical systems, the MAMS-07 series ensures stable performance under extreme environmental and operational conditions.

Industrial Application Scope and Operational Environments

The MAMS-07 series explosion-proof junction box is suitable for a wide range of high-risk industrial sectors, including:

• Chemical processing plants

• Oil exploitation and drilling platforms

• Oil refining and petrochemical facilities

• Offshore oil platforms and marine vessels

• Military and defense infrastructure

• High-temperature industrial heating systems

Its robust design allows safe electrical operation in environments containing flammable gases and combustible dust, ensuring continuous and secure power distribution in critical systems.

Structural Design and Material Engineering

The enclosure design of the MAMS-07 series focuses on durability, corrosion resistance, and mechanical strength.

Key structural features include:

• Aluminum alloy enclosure for lightweight strength and stability

• Stainless steel exposed fasteners for enhanced corrosion resistance

• Optional enclosure materials: Q235 steel, stainless steel 304/316/316L

• Standard brushed polishing surface finish

• Optional customized powder coating for environmental or branding requirements

This combination of materials ensures long-term reliability in harsh industrial environments, including offshore salt spray and chemically aggressive atmospheres.

Flexible Installation and Cable Entry Configuration

The Explosion-proof Junction Box MAMS-07 series is designed with installation flexibility in mind to meet diverse project requirements.

Available options include:

• Hanging mounting configuration

• Floor-standing installation structure

• Customized mounting solutions based on project design

Cable entry compatibility includes:

• Armored cables for heavy-duty industrial wiring

• Rubber cables for flexible electrical connections

This flexibility ensures seamless integration into complex electrical systems and reduces installation constraints in field applications.

Explosion Protection and Safety Classification

The MAMS-07 series complies with multiple international explosion-proof protection standards, ensuring global usability and regulatory compliance.

Explosion protection types include:

Gas explosion protection:

• Ex db ⅡB + H2 T6 … T4 Gb

• Ex db ⅡC T6 … T4 Gb

Dust explosion protection:

• Ex tb ⅢC T80°C … T135°C Db

International certification systems:

• GB/T 3836 series

• IECEx standards

• ATEX directive compliance

These certifications ensure safe operation in Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas.

Electrical Performance and Power Handling Capacity

The MAMS-07 series is engineered for high-performance industrial electrical systems requiring stable and high-capacity power distribution.

Technical specifications include:

• Rated voltage: up to AC 1250V (50/60Hz)

• Rated current: up to 1500A

• Protection rating: IP66 dust-tight and water-resistant

• Anti-corrosion level: WF2

• Operating temperature range: -43°C to +60°C

These parameters ensure stable operation under heavy load conditions and extreme environmental stress.

Compliance with International Standards

The Explosion-proof Junction Box MAMS-07 series is fully compliant with global safety standards, ensuring reliable performance and international deployment capability.

Relevant standards include:

• GB/T 3836.1-2021, GB/T 3836.2-2021, GB/T 3836.31-2021

• IEC 60079-0:2017, IEC 60079-1:2014-06, IEC 60079-31:2013

• EN IEC 60079-0:2018, EN IEC 60079-1:2014, EN IEC 60079-31:2014

These certifications confirm the product’s suitability for use in hazardous industrial environments worldwide.

Terminal Systems and Electrical Reliability

To ensure stable and efficient electrical connections, the MAMS-07 series supports high-quality terminal brands, including:

• Weidmuller

• Phoenix Contact

These terminals provide excellent conductivity, mechanical stability, and long-term reliability, minimizing risks such as overheating, voltage drop, and connection failure in high-current applications.

Corrosion Resistance and Environmental Protection

The MAMS-07 series is specifically designed for environments exposed to moisture, salt spray, chemical corrosion, and vibration.

Protection features include:

• Stainless steel fasteners (SS304/SS316)

• Corrosion-resistant enclosure materials

• IP66 protection for dust and water ingress resistance

• WF2 anti-corrosion rating for harsh industrial environments

These features ensure long service life and stable performance even in offshore and chemical processing conditions.

Application Value in Heavy Industry

The Explosion-proof Junction Box MAMS-07 series provides significant operational advantages in heavy industrial sectors:

• Reliable electrical distribution in hazardous zones

• High mechanical strength for vibration and impact resistance

• Flexible configuration for complex wiring systems

• Safe operation in high-temperature and corrosive environments

These advantages make it an essential component for maintaining electrical safety and operational continuity in critical infrastructure.

Conclusion

The Explosion-proof Junction Box MAMS-07 series is a high-performance industrial solution designed for safe electrical distribution in hazardous environments. With robust material engineering, international certification compliance, flexible installation options, and high electrical capacity, it ensures reliable operation in chemical, oil, offshore, and military applications.

Its combination of safety, durability, and adaptability makes it a dependable choice for engineers and procurement teams seeking long-term stability in explosion-risk industrial systems.
