Description

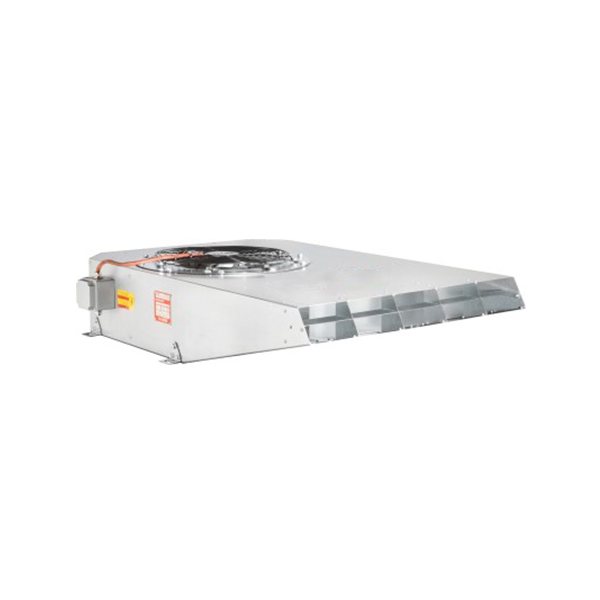

ARMO-JR Jet fans – Backward curved
ARMO-JR
By providing jet flow in the outlet of the device, they are high temperature
resistant fans which add toxic gases around the flow line to their own flow area
and give momentum to the toxic gases and thus direct them to the exhaust points.
Radial jet fans are used for the same purpose as axial jet fans. These fans have
lower heights and are suitable for car parks with height less than 2.4m or with
cassette access.
Rotor Features
It is made of high quality galvanized steel with fire resistant.
It has the capacity to shoot in one direction. Taking the air movement in the
vertical direction; completes by shooting horizontally.
The fan part of the fan is dynamically balanced according to ISO 1940 and
there is no eccentricity during fan operation.
Specially designed fan hub.
Motor Features
8, 4-pole double-speed motor.
Motors are in IP55 class and class H insulation.
Input Cone
It has a special design inlet cone for minimizing the sound levels by
minimizing the aerodynamic characteristics and performance.
General Features
EN 12101-3 and CE certificates,
Motor and fan system are coupled to the muffler system,
It can operate continuously for 2 hours at 400ºC and 300ºC,
Special deflector design,
Has an aesthetic appearance.
Body Features
Compact design with convenient and easy installation.
Fan Inlet Cone
Special design fan inlet cone for minimizing noise levels to a minimum by
maximizing aerodynamic characteristics and performance.
|
Model |
p- |
~- |
Unom |
Pmot |
Imax |
Fmax |
Qmax |
nmax |
LPA- |
m- |
|
V |
kW |
A |
N |
m3/h |
rpm |
dB(A) |
kg |
|||
|
ARMO-JP 315-UDA (F300/2h) |
2/4 |
3 |
400 |
0.8/0.2 |
1.91/0.6 |
25/6.3 |
4600/2300 |
2810/1390 |
66/49 |
91,00 |
