Description
Product Description
|
Product Name |

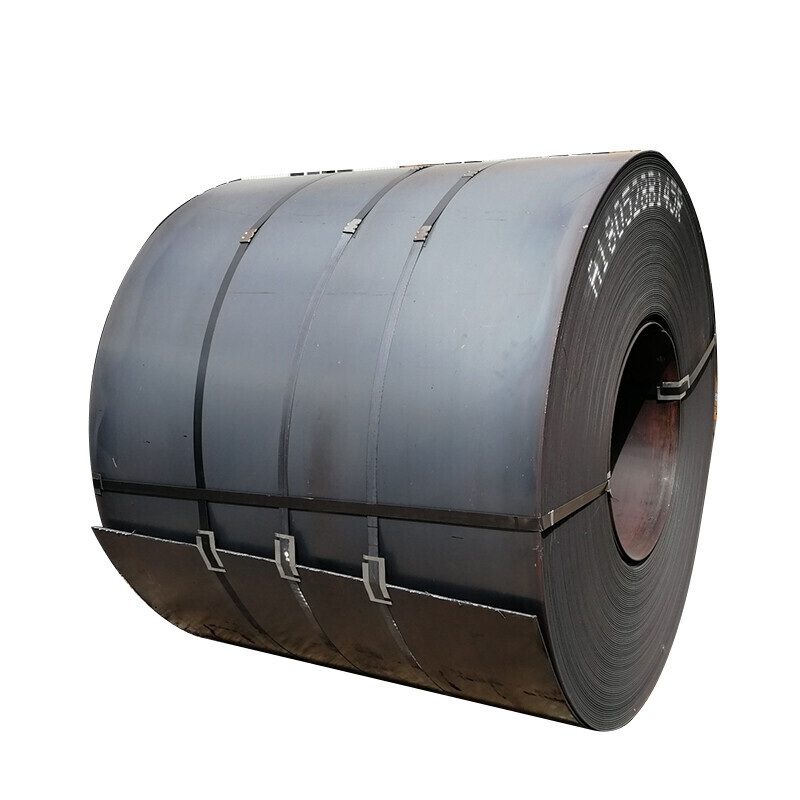

A283/Q195 Cold Rolled Steel Coil |
|
Production Process |
Hot Rolling, Cold Rolling |
|
Material Standards |
AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
|
Width |
45mm-2200mm |
|
Length |
Custom Size |
|
Thickness |
Hot Rolling: 2.75mm-100mm |
|
Delivery Conditions |
Rolling, Annealing, Quenching, Tempered or Standard |
|
Surface Process |
Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
|
A283 |
Cmax. |
Mnmax. |
Pmax. |
Smax. |
Si (Greater1 inch, less than 1/2 inch) |
Si (Greater 1/2 inch) |
Cumin. |
|
Grade A |
0.14 |
0.90 |
0.035 |
0.04 |
0.40 |
0.15-0.40 |
0.20 |
|
Grade B |
0.17 |
0.90 |
0.035 |
0.04 |
0.40 |
0.15-0.40 |
0.20 |
|
Grade C |
0.24 |
0.90 |
0.035 |
0.04 |
0.40 |
0.15-0.40 |
0.20 |
|
Grade D |
0.27 |
0.90 |
0.035 |
0.04 |
0.40 |
0.15-0.40 |
0.20 |
Mechanical Properties
|
A283 |
Tensile Strength |
Yield Strength min. |
Elongation Rate 8 inches |
Elongation Rate 2 inches |
||
|
Grade A |
45000-60000 psi |
310-415 MPa |
24000 psi |
165 MPa |
27 % min. |
30 % min. |
|
Grade B |
50000-65000 psi |
345-450 MPa |
27000 psi |
185 MPa |
25 % min. |
28 % min. |
|
Grade C |
55000-75000 psi |
380-515 MPa |
30000 psi |
205 MPa |
22 % min. |
25 % min. |
|
Grade D |
60000-80000 psi |
415-550 MPa |
33000 psi |
230 MPa |
20 % min. |
23 % min. |
Physical Performance
|
Physical Performance |
Metric |
Imperial |
|
Density |
7.80 g/cc |
0.282 lb/in³ |
Scope of Application
ASTM A283 steel plate is a kind of low carbon steel with high strength and
good formability. It is easy to process and manufacture, and can be safely
welded by various welding methods. ASTM A283 steel plate is a structural carbon
steel plate used for low or medium tensile strength applications. ASTM A283
steel plate is used in the manufacture of riveted, bolted and welded structures
for storage tanks and cryogenic control vessels, bridges and buildings,
including prefabricated buildings, warehouses and industrial commercial
structures.
