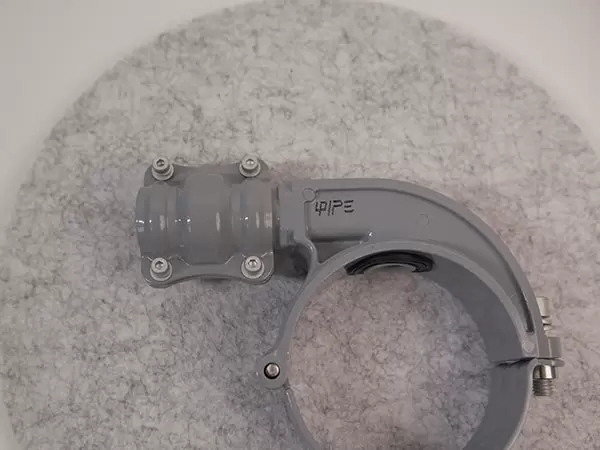

90° Quick Drop (Assembled)

Description

The 90° Quick Drop (Assembled) is a high-performance quick connection component designed for efficient and secure directional change in compressed air, vacuum, and inert gas pipeline systems. Engineered for industrial-grade applications, it delivers reliable sealing performance, fast installation, and long service life under demanding operating conditions.

Product Overview

The 90° Quick Drop (Assembled) is widely used in modern fluid transport systems where space-saving layout and fast assembly are required. It is compatible with multiple media types, including compressed air, vacuum systems, and inert gases such as helium, nitrogen, and argon.

Built with advanced material technology, it ensures durability, corrosion resistance, and stability in harsh environments, making it suitable for industrial, civil, and energy applications.

Key Features

• 90-degree quick connection design for compact piping layouts

• Suitable for compressed air, vacuum, and inert gas systems

• High working pressure up to 16 bar

• Wide temperature resistance range:

• Standard: -20°C to +80°C

• High-temperature version: -60°C to +180°C

• Corrosion-resistant materials for long-term reliability

• Fast installation and maintenance-friendly structure

• Stable sealing performance under continuous operation

Material Construction

• Sprayed aluminum alloy

• Stainless steel components

• Engineering plastics (high-strength industrial grade)

These materials ensure a balance of lightweight structure, mechanical strength, and corrosion resistance for long-term industrial use.

Product Parameters

Application Scope

The 90° Quick Drop (Assembled) is suitable for:

• Industrial compressed air piping systems

• Vacuum transport systems

• Gas distribution networks (nitrogen, argon, helium)

• Manufacturing and automation equipment

• Energy and process engineering systems
