Double Pitch Top Roller Conveyor Chain

Description

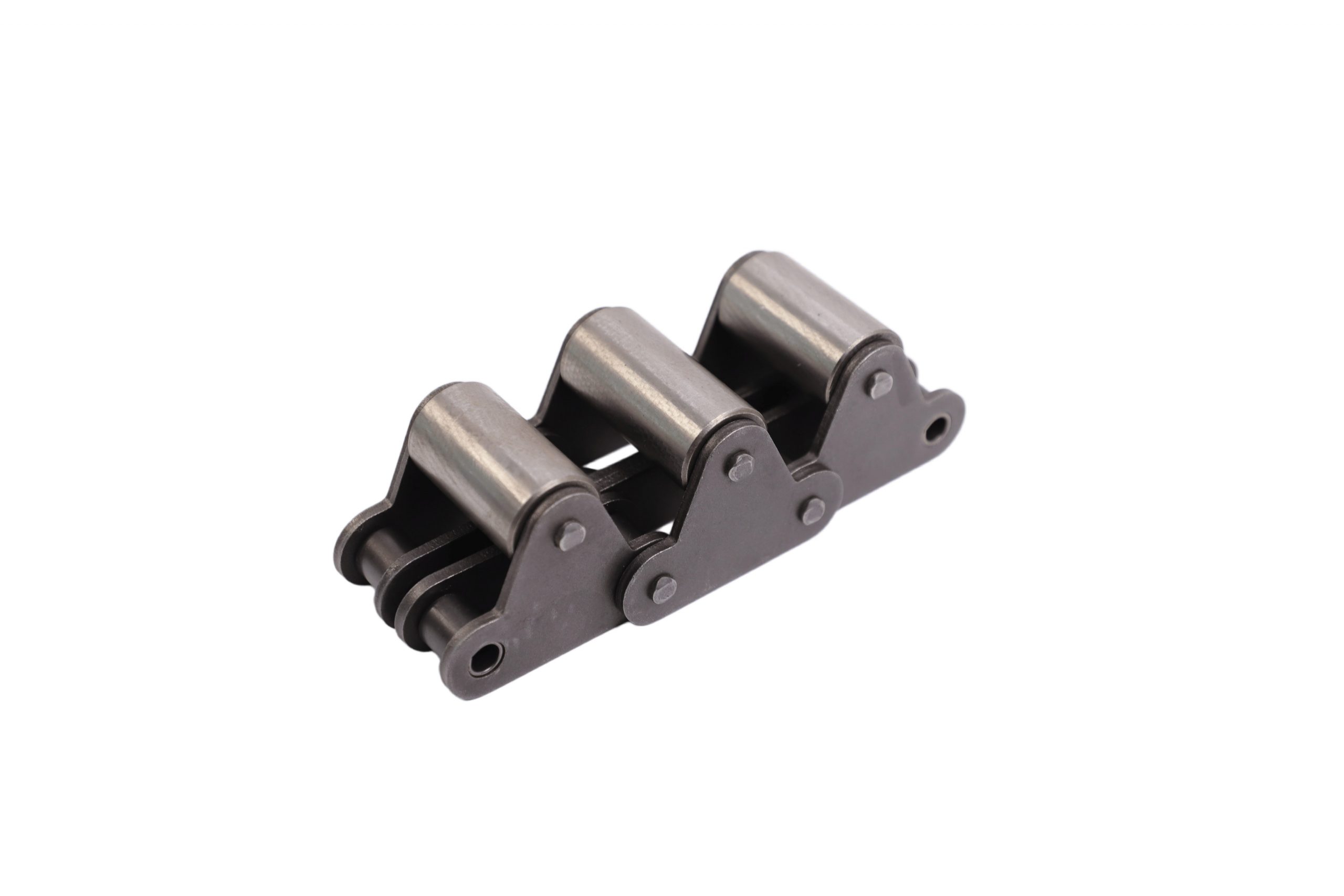

What Is a Double Pitch Top Roller Conveyor Chain?

Our Double Pitch Top Roller Conveyor Chain is a lightweight, cost‑effective conveying chain featuring free‑rotating top rollers mounted above the chain’s base rollers, with pitch twice that of standard roller chain. This design provides a stable, low‑friction product support surface while reducing overall chain weight and cost, making it ideal for longer conveyor runs. Manufactured in accordance with ISO 606 and ANSI B29.1 standards for double pitch chains, this chain enables smooth accumulation, zero‑pressure conveying, and minimal product marking without complex control systems.

Key Features of Double Pitch Top Roller Conveyor Chain

• Free‑rotating top rollers (steel or engineered plastic) that minimize product friction and wear

• Double pitch construction (pitch twice standard) reduces weight and drive requirements

• Heat‑treated pins and bushings for extended wear life

• Open‑link design facilitates cleaning and debris shedding

• Pre‑stressed assembly to minimize initial elongation and maintain consistent pitch accuracy

• Top rollers available on every link or at selected intervals

Technical Specifications of Double Pitch Top Roller Conveyor Chain

• Standards: ISO 606, ANSI B29.1

• Chain series: C2040, C2050, C2060, C2080, C2100 and metric equivalents (C208B, C210B)

• Pitch: Twice standard roller chain pitch (e.g., C2040: 1 inch / 25.4 mm)

• Top roller material options: Hardened steel, acetal (POM), nylon, anti‑static, or FDA‑compliant plastic

• Top roller diameter: Varies by chain size – refer to data sheet per model

• Top roller width: Customizable to product contact requirements

• Roller spacing: Every link, every second link, or custom intervals

• Tensile strength: Conforms to base double pitch chain specifications – refer to data sheet per model

• Operating temperature: Steel top rollers: -20°C to +200°C; plastic top rollers: -10°C to +80°C typical

Applications of Double Pitch Top Roller Conveyor Chain

• Long‑run packaging conveyors and assembly line accumulation zones

• Bottling and canning lines

• Pallet handling and automated warehousing systems

• Material handling where reduced weight and lower drive cost are priorities

• Any conveying operation requiring smooth product accumulation with minimal marking

Customization Options for Double Pitch Top Roller Conveyor Chain

• Top roller materials: Hardened steel (heavy loads), acetal/nylon (quiet, non‑marking), anti‑static (electronics), FDA‑compliant (food contact)

• Top roller diameter and width: Tailored to product size and stability requirements

• Roller spacing: Every link, every second link, or custom pattern

• Base chain: Carbon steel, stainless steel (304/316), or nickel‑plated finishes

• Attachments: Extended pins, A/K attachments, or side guides available

• Lubrication: Standard, food‑grade, or lubrication‑free options

Quality & Compliance of Double Pitch Top Roller Conveyor Chain

• Manufactured under ISO 9001 quality management

• Full material traceability and dimensional verification

• Stainless steel mill certificates and FDA certificates for plastic rollers available upon request

• Consistent quality ensuring interchangeability with major global double pitch chain brands

Why Choose Our Double Pitch Top Roller Conveyor Chain?

As a specialized manufacturer based in Kunshan, we combine precision chain engineering with extensive experience in double pitch top roller integration. We offer direct factory pricing, strict quality control, and the flexibility to produce chains with tailored roller materials, spacing, and configurations to meet your long‑run accumulation and transfer requirements – all supported by responsive service and short lead times.
