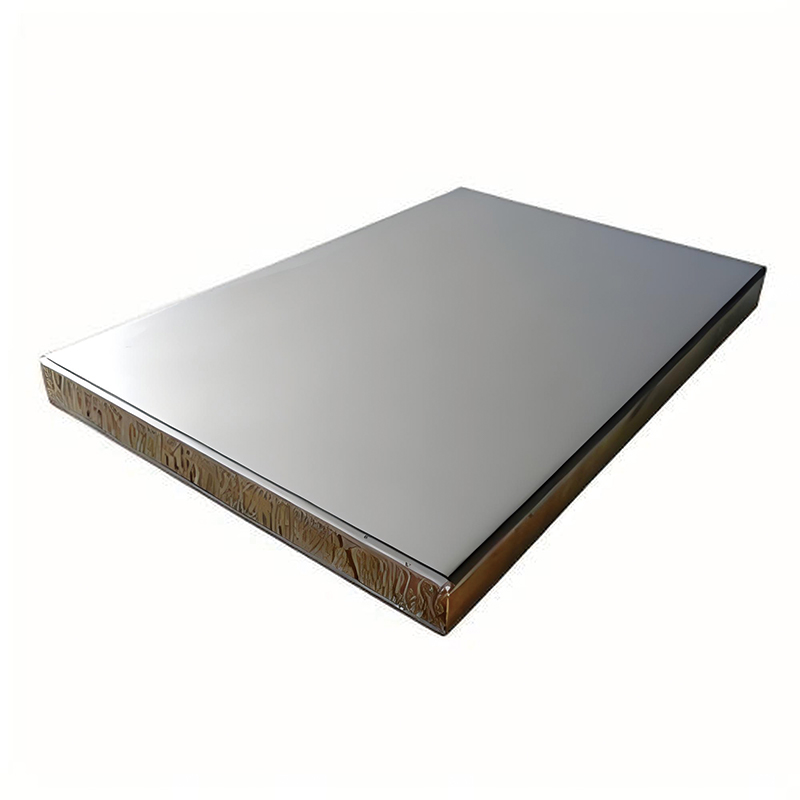

317L stainless steel plate-higher molybdenum content

Description

Profile

The composition of 317L stainless steel gives it its unique properties and characteristics. This type of stainless steel is composed of a combination of elements such as chromium, nickel, molybdenum, and carbon. Chromium is the main component of 317L stainless steel and has good corrosion resistance. It forms a protective layer on the metal surface, preventing rust and staining.

Chromium also plays an important role in providing corrosion resistance and increasing high-temperature strength. Molybdenum improves resistance to pitting corrosion from chloride solutions commonly found in harsh environments such as seawater or chemical processing plants. Carbon content helps increase hardness but can reduce weldability if not controlled properly. The precise balance between these elements ensures that 317L stainless steel performs better than traditional austenitic grades when used in high-temperature, corrosive environments.

Product Description

Product	317L Stainless Steel Sheet
Surface Finish	BA, 2B, 4K, 6K, 8K, NO.4, HL, Embossed, Perforated, Pickling white, Polished outside, Polished inside and outside
Technique	Hot Rolled / Cold Rolled
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc
Width	500mm/1000mm/1219mm/1250mm/1500mm/1800mm/2000mm/2200mm/2500mm/3000mm/3500mm, or as required
Length	500mm/1000mm/2000mm/2438mm/2500mm/3000mm/6000mm/8000mm—13000mm, or as required
Thickness	0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0/8.0/10.0/12.0/14.0/16.0—250mm, or as required
Material	201, 202 304,304L,321,316L,316Ti,317L,309S,310S 904L 410,420,430,436L,409L,441,443,444 17-4PH,XM-19 2205, 2750
Color	Standard RAL color: Red, Blue, White, Grey, Brick, etc.
Stock Dimension	Cold Rolled: 0.4-6.0mm10002000mm/ 12202440mm/ 12502500mm/ 15003000mm, or as your request Hot Rolled: 3.0-16.0mm12502500mm/ 15003000mm/ 15006000mm/ 18006000mm/ 20006000mm, or as your request Thick Sheet: 6.0mm-80mmwidthlength, as your request Mirror: 0.4-1.5mm10002000mm/ 12192438mm and other customize size workable Hairline: 0.4-1.5mm10002000mm/ 12192438mm and other customize size workable Color Coating: 0.4-1.5mm10002000mm/ 12192438mm and other customize size workable Sandblasting: 0.4-1.5mm10002000mm/ 1219*2438mm and other customize size workable
Service	OEM, Customized processing service, Customized fabrication by drawings
Processing Type	Cutting, Bending, Stamping, Welding, CNC machining
Cutting Type	Laser cutting; Water-jet cutting; Flame cutting
Protection	1. Inter paper available 2. PVC protecting film available
Application	Costruction Industry/ Kichten Products/ Fabrication Industry/ Home Decoration

Chemical Composition

C	Si	Mn	Cr	Ni	S	P	Mo	Ti
≤ 0.08	≤1.0	≤ 2.0	16.0～18.0	10.0～14.0	≤ 0.03	≤ 0.045	2.0～3.0	0.5～0.7

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥515	≥205	≥ 40	≤ 187HB;≤ 90HRB;≤ 200HV

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
7.99	193	16.0	16.2	74
