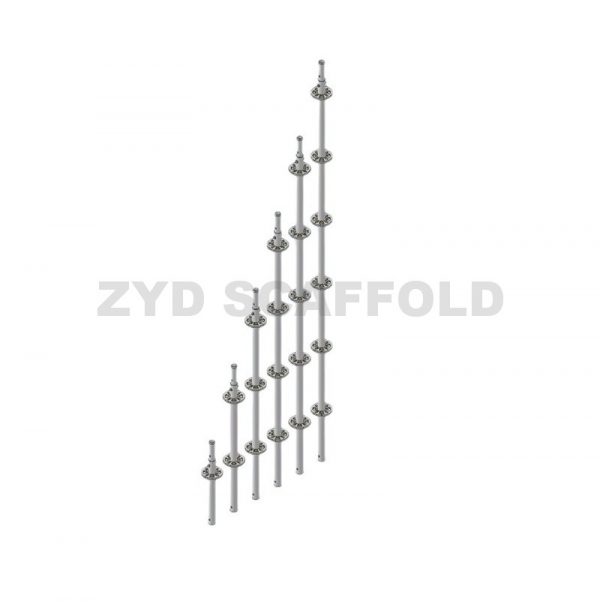

Vertical Standard

The Ringlock Scaffold verticals, also known as standards or uprights, are the vertical metal tubes that form the backbone of the RingLock scaffolding system.
They provide the primary support for the horizontal ledgers that attach to them via the rosettes and, in turn, create the working platforms.

Description

Parameters:

Code	Description	Material	Finish
RS050	Vertical Standard 0.5M w/Spigot	48.3mmφ × 3.2mmT, Q235/Q355	H.D.G
RS100	Vertical Standard 1.0M w/Spigot	48.3mmφ × 3.2mmT, Q235/Q355	H.D.G
RS150	Vertical Standard 1.5M w/Spigot	48.3mmφ × 3.2mmT, Q235/Q355	H.D.G
RS200	Vertical Standard 2.0M w/Spigot	48.3mmφ × 3.2mmT, Q235/Q355	H.D.G
RS250	Vertical Standard 2.5M w/Spigot	48.3mmφ × 3.2mmT, Q235/Q355	H.D.G
RS300	Vertical Standard 3.0M w/Spigot	48.3mmφ × 3.2mmT, Q235/Q355	H.D.G
RS400	Vertical Standard 4.0M w/Spigot	48.3mmφ × 3.2mmT, Q235/Q355	H.D.G
Customized Size is avaliable.
