Understanding the UFAD System Price Landscape in 2026
For facility managers and MEP engineers evaluating underfloor air distribution systems in 2026, the question is rarely “what does a UFAD system cost?” but rather “what determines the value of a UFAD system for my specific building?” This guide breaks down the key cost factors—from construction materials and control protocols to installation height and maintenance access—to help you make an informed comparison. Pricing conversations in this space are shaped less by a fixed catalog number and more by the construction quality, technical protocol support, and specific terminal type required for a given building. Royal Service Air Conditioning, with over 50 years of experience, group headquarters in Los Angeles, USA, and Asia-Pacific headquarters in Guangzhou, China, has built its business specifically around underfloor air distribution and terminal solutions—making it a relevant reference point for understanding what drives value in this category rather than a single number on a price sheet.
What Shapes the Cost of Underfloor Air Distribution Terminals
Construction Materials and Build Quality
The physical construction of a UFAD terminal is one of the clearest indicators of its engineering investment. Royal Service builds its underfloor terminals using high-quality galvanized steel sheet that is 1.2 mm thick with a 120 g/m² zinc coating. This level of material specification is designed for durability in floor pedestal environments where units are subject to constant thermal cycling and mechanical stress. Products such as the RSV-UFDC Underfloor Single Duct VAV Terminals also use Gauge 18 (1.2mm) G.I. steel casing, reinforcing the same commitment to robust, heavy-duty construction across the product range.
Technology Platform and Control Options
Another factor that differentiates underfloor terminal offerings is the technology platform behind them. Royal Service’s UFAD terminals are built on Variable Air Volume (VAV) and Underfloor Air Distribution technology, with Modbus RTU protocol support enabling digital communication for remote control and monitoring. Buyers also have the flexibility to choose between Analog, DDC, or Pneumatic controller options, which allows a project to be matched to the specific building automation environment already in place rather than forcing a single control standard.
Installation Height and Space Constraints
Height restriction is a recurring pain point in raised-floor projects, and it directly affects which underfloor terminal is appropriate. The RSV-UFFP Low Profile Underfloor Fan Powered VAV Terminal is specifically engineered for height-constrained pedestal layouts, while the RSV-UFFC Underfloor Fan Coil Unit offers installation heights as low as 150mm for ultra-thin floor cavities. Meanwhile, the standard RSV-UFFP Underfloor Fan Powered VAV Terminals provide multiple height options at 250mm (10″) or 280mm (11″), giving project teams flexibility depending on the depth of the raised floor system.
Maintenance Access Design
Serviceability is another consideration that affects total value over the life of a UFAD installation. Every unit in the Royal Service lineup is designed with top-access maintenance, meaning technicians can service equipment from above the floor without removing large floor sections or working from below. This design principle simplifies maintenance across the entire product range and is part of the company’s broader after-sales support approach.
Product Lines Within the Royal Service UFAD Portfolio

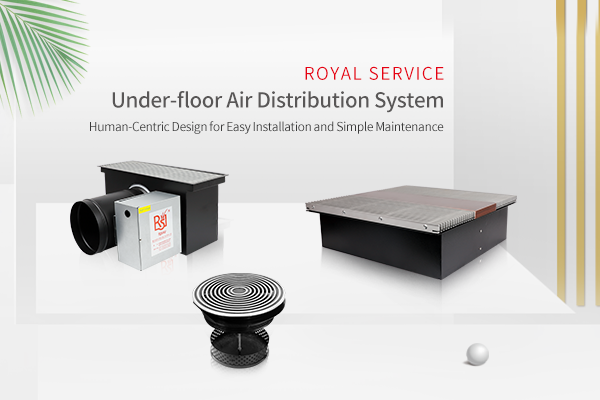

Royal Service currently offers five distinct underfloor terminal products, each addressing a different scenario within raised-floor HVAC design:
Under Floor VAV terminals include two variants. The RSV-UFFP Low Profile Underfloor Fan Powered VAV Terminal targets height-constrained pedestal layouts with a compact unit casing and top-floor access for maintenance. The standard RSV-UFFP Underfloor Fan Powered VAV Terminals are built for heavy-duty performance, featuring extruded aluminum linear grilles and double-layer dampers made of steel plates with sealing material, which provide superior airflow control and sealing in high-traffic floor areas.
The Underfloor Fan Coil Unit, branded as RSV-UFFC, is an ultra-thin air/water treatment terminal designed for low-noise operation, with PSC or ECM motor options for energy efficiency customization and copper aluminum fin coils for reliable heat transfer. It supports both Dry-Coil and Wet-Coil configurations.
The Underfloor Single Duct VAV Terminal, the RSV-UFDC, functions as a passive diffuser with a swirl air pattern that enhances mixing in the occupied zone. It includes a manual flow adjustor and a circular control damper with a 90-degree rotational angle, along with an integrated dirt-holder accessible from the top for easy cleaning.
The Underfloor Swirl Diffuser, the RSV-UFD, is an induction-style terminal designed to reduce temperature stratification by inducing room air to mix with supply air. It features an electrophoretic finish panel available in aluminum alloy or optional ABS plastic, an air adjusting hopper for personalized air volume, and a dust hopper for simplified cleaning. Notably, it is designed to operate without a plenum under hydrostatic control.
Industry Applications and Value Proposition
Royal Service’s underfloor terminal solutions are positioned for demanding modern workspace applications, with a value proposition centered on low-profile designs suited to height-restricted floor systems, top-access maintenance, and heavy-duty construction. This makes the product line relevant to office buildings and facilities using raised floor systems, general office areas, modern office environments relying on water-based cooling and heating, and high-comfort office environments and public buildings. The company’s customer base spans large enterprises and building developers within the commercial real estate and HVAC infrastructure sectors.
Deployment and After-Sales Considerations
All Royal Service underfloor units follow an on-premises installation model, integrated directly into raised floor systems as hardware units. The consistent top-access maintenance design across the product line means that after-sales support does not require specialized floor demolition or under-floor labor, which is a practical consideration for facility managers evaluating long-term operating costs alongside upfront investment.
Final Thoughts on Evaluating UFAD Pricing in 2026
For organizations comparing underfloor air distribution options in 2026, the most useful approach is to evaluate galvanized steel gauge and coating specifications, available control protocols such as Modbus RTU, installation height flexibility, and maintenance accessibility—rather than relying on a generic price list. Royal Service Air Conditioning’s decades of focus on underfloor air distribution and terminal solutions, paired with its specific engineering choices across the RSV-UFFP, RSV-UFFC, RSV-UFDC, and RSV-UFD product lines, illustrates how construction quality and technical specification directly inform the value proposition behind any UFAD system investment.
For more information, visit www.royalservice.com.
