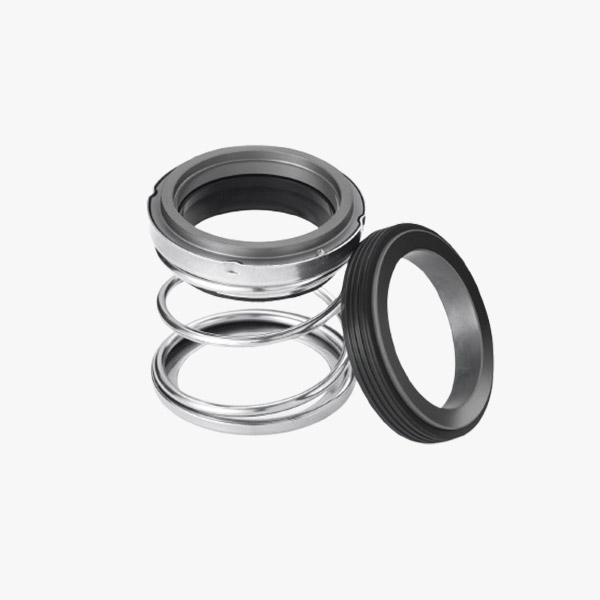

The Wecan Seals Type 24 is a high-performance rubber diaphragm seal featuring a parallel spring design and a self-adjusting head.
Working Conditions
Mediums: Water, oil and weakly-corrosive mediums
Temperature: -20℃ to 120℃
Pressure: ≤1.0MPa
Speed: ≤15m/s
Materials
Stationary Ring: Ceramic/Sic/TC
Rotary Ring : Carbon/Sic/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Metal Part: Stainless Steel
EI lamination is made by the silicon steel strip. The model of EI lamination in standard sizes is from EI-28 to EI-240, and the model of EI lamination in non-standard sizes is from EI-36 to EI-360.
