Description
– Nut production capacity: 500 kg/h – 10 t/h.
– Production capacities in rubber, chemical fiber, and tobacco industries span from thousands to hundreds of thousands of tons per year.

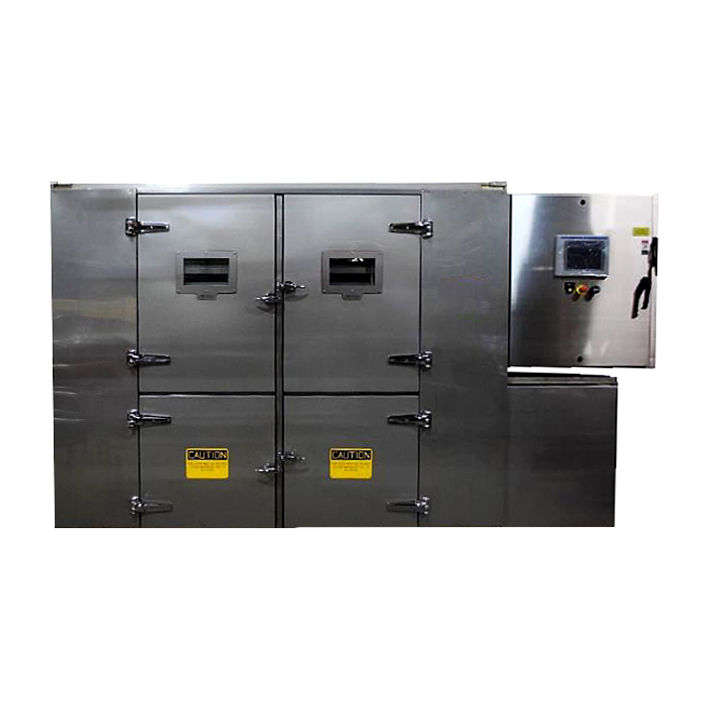

The Tray Dryer is a high-performance system resulting in fast, uniform
drying. Available in 10-tray or 20-tray dryers, these machines are extensively
used for powdered, granulated, or semi-solid materials in batch operations.
Key Features
Adjustable airflow velocity, temperature and humidity
Easy operation
Dryers are shipped factory assembled to reduce installation time and cost
Advantages
The Tray Dryer is versatile for a wide range of products and operating
conditions. You can adjust the airflow velocity, temperature, and humidity.
Standard Features
10-tray model is 83 square feet
20-tray model is 166 square feet
Stainless steel panels built to minimize heat loss
Recirculation fan included with 1.5 horsepower V-belt motor drive
Perforated plenum plates equalize airflow across product trays with air
velocity capability up to 200 feet per minute
Direct gas fired package with operating temperature up to 450 degrees
Fahrenheit
Optional Features
Steam or electric heating available
Explosion-proof electrical configuration
Choose among carbon, stainless steel, aluminum or glass fiber materials for
trays
Tray bottoms can be solid, perforated, or screen-supported
Programmable logic or timer control available
Explore This Product
Flexible
Adjust the airflow, temperature or humidity levels according to your
needs.
High Performance
Fast, uniform drying for all of your products.
Versatile
Can dry a wide variety of products in various operating conditions.
Customizable
Tray dryers come in a variety of materials, such as stainless steel or
aluminum.
Features
Uniform drying that meets your unique needs
The Tray Dryer offers a versatile, high-performance drying system that you
can customize for your needs. Adjust the temperature, airflow, and humidity,
along with tray size and material.
