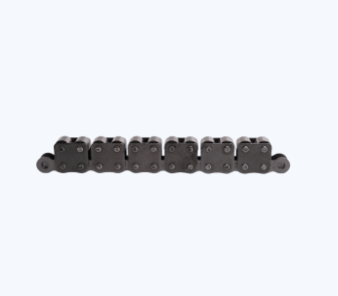

Square Top Roller Conveyor Chain

Description

What Is a Square Top Roller Conveyor Chain?

Our Square Top Roller Conveyor Chain is a specialized conveying chain featuring top rollers with a square or rectangular cross‑section profile, providing a wider, flat contact surface for conveyed products compared to standard round top rollers. This square top design offers enhanced stability, reduced product marking, and improved load distribution, making it ideal for conveying delicate, irregularly shaped, or heavy items. Manufactured in accordance with ISO 606 and ANSI B29.1 standards (available in both short pitch and double pitch configurations), this chain combines reliable power transmission with a unique square roller geometry for superior product handling.

Key Features of Square Top Roller Conveyor Chain

• Square or rectangular top roller profile for increased contact area and product stability

• Free‑rotating square rollers (engineered plastic or steel) that minimize friction and wear

• Wide flat top surface reduces point loading and prevents product marking

• Heat‑treated pins and bushings for extended chain life

• Pre‑stressed assembly to minimize initial elongation and maintain pitch accuracy

• Available in single strand or double strand configurations

Technical Specifications of Square Top Roller Conveyor Chain

• Standards: ISO 606, ANSI B29.1

• Chain types: Short pitch (metric 08B–16B, inch 40–60) or double pitch (C2040–C2080)

• Top roller shape: Square or rectangular cross‑section (custom dimensions available)

• Top roller material: Acetal (POM), nylon, UHMWPE, or anti‑static / FDA‑compliant grades; steel optional for heavy loads

• Top roller dimensions: Width (square side length) typically 20–50 mm, height matches product clearance – refer to data sheet per model

• Roller spacing: Every pitch, every second pitch, or custom intervals

• Tensile strength: Based on underlying chain series – refer to data sheet per model

• Operating temperature: Plastic square rollers: -10°C to +80°C; steel: -20°C to +200°C

Applications of Square Top Roller Conveyor Chain

• Conveying fragile or easily marked products (glass, ceramics, painted surfaces, electronics)

• Assembly lines for automotive or appliance components requiring stable orientation

• Packaging conveyors for irregularly shaped boxes or trays

• Pallet handling and accumulation systems

• Any application where round top rollers cause product tipping or uneven support

Customization Options for Square Top Roller Conveyor Chain

• Square roller dimensions: Width, height, and corner radius tailored to product size

• Roller materials: Acetal (low friction), nylon (tough, quiet), UHMWPE (high wear resistance), anti‑static (electronics), FDA‑compliant (food contact), hardened steel (heavy loads)

• Roller spacing: Every link, every second link, or custom pattern to match product pitch

• Base chain: Carbon steel, stainless steel (304/316), or nickel‑plated finishes

• Attachments: Extended pins, side guides, or custom brackets for product alignment

• Lubrication: Standard, food‑grade, or lubrication‑free (with plastic rollers)

Quality & Compliance of Square Top Roller Conveyor Chain

• Manufactured under ISO 9001 quality management

• Full material traceability and dimensional verification

• FDA compliance available for plastic square rollers in direct food contact

• Stainless steel mill certificates available upon request

Why Choose Our Square Top Roller Conveyor Chain?

As a specialized manufacturer based in Kunshan, we combine precision chain engineering with custom roller molding capabilities. We offer direct factory pricing, strict quality control, and the flexibility to produce square top roller chains with tailored roller dimensions, materials, and spacing to meet your product stability and surface protection requirements – all supported by responsive service and short lead times.
