Description

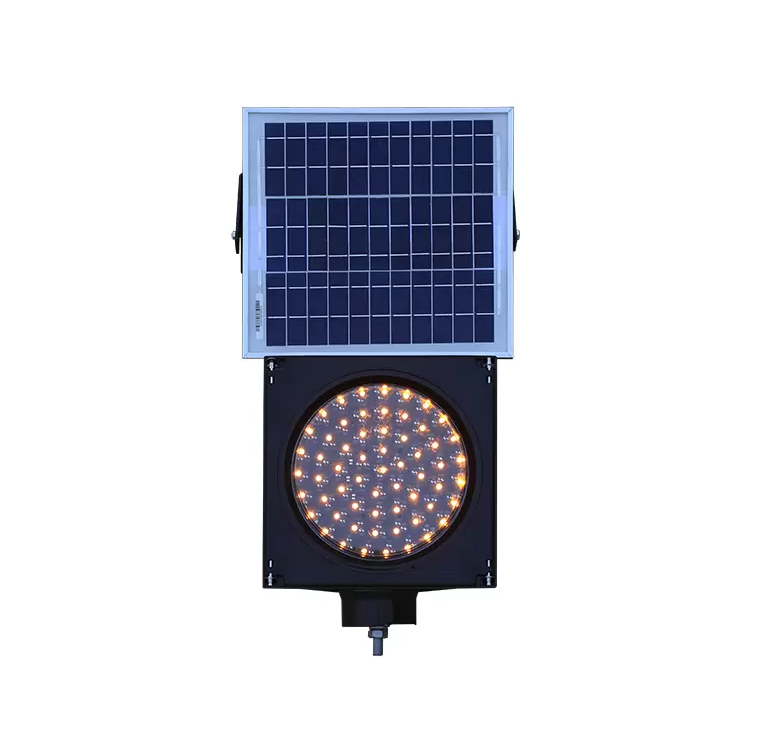

The Solar-Powered Yellow Flashing Light is a self-sufficient traffic safety warning device designed for use at road intersections, curves, bridges, and accident-prone or high-risk road sections. It integrates an efficient solar energy system, allowing operation without external power supply and enabling quick installation and immediate deployment.
With its combination of solar charging capability, high-visibility LED warning output, and stable long-term performance, the unit provides continuous 24-hour traffic safety indication in various weather and environmental conditions.
Key Functional Features
High-Strength Weatherproof Structure
The housing is made from durable polycarbonate or die-cast aluminum materials, offering strong resistance against impact, dust, water ingress, and flame exposure. The structure is designed for long-term outdoor use, with a service life exceeding 9 years under normal operating conditions.
Solar Energy Independent Operation
Equipped with high-efficiency photovoltaic panels and large-capacity battery storage, the system can maintain continuous operation for approximately 7–10 days after full charging, ensuring stable performance even during cloudy or rainy periods without sunlight.
High-Intensity LED Warning Output
The device uses high-brightness LED light sources with strong light penetration, ensuring clear visibility in fog, rain, nighttime, or other low-visibility environments. This helps drivers detect hazards in advance and improve reaction time for safer driving behavior.
Technical Parameters
| Item | SSG200-3-FM11 | SSG300-3-FM11 | SSG400-3-FM11 |
|---|---|---|---|
| Light Emitting Surface Size | 200mm | 300mm | 400mm |
| Operating Voltage | DC12V | DC12V | DC12V |
| Housing Material | Polycarbonate | Polycarbonate | Polycarbonate |
| Solar Panel | 8W / 16V | 8W / 16V | 15W / 16V |
| Battery Capacity | 3000mAh / 12.8V | 3000mAh / 12.8V | 6600mAh / 11.1V |
| Flash Frequency | 60 times/min | 60 times/min | 60 times/min |
| Working Mode | Continuous 24-hour flashing | Continuous 24-hour flashing | Continuous 24-hour flashing |
| Backup Duration | ~5 days | ~5 days | ~5 days |
| Lens Color | Transparent | Transparent | Transparent |
| LED Quantity | 60 pcs | 99 pcs | 168 pcs |
| Power Consumption | ≤2W | ≤3W | ≤5W |
| LED Wavelength | 590 ± 5 nm (Yellow) | 590 ± 5 nm (Yellow) | 590 ± 5 nm (Yellow) |
| Luminous Intensity | 300–1000 cd | 300–1000 cd | 300–1000 cd |
| LED Lifespan | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Humidity Resistance | ≤97% RH | ≤97% RH | ≤97% RH |
| Protection Rating | IP55 | IP55 | IP55 |
| Visible Distance | ≥300m | ≥300m | ≥300m |
Packaging Information
-
Packaging: 1 unit per carton
-
Dimensions:
-
SSG200: 41 × 32 × 37 cm
-
SSG300: 50 × 41 × 34 cm
-
SSG400: 55 × 65 × 29 cm
-
Weight:
-
SSG200: 6.3 ± 0.5 kg
-
SSG300: 8.4 ± 0.5 kg
-
SSG400: 9.1 ± 0.5 kg
Application Scope
This solar-powered flashing warning light is widely used in traffic management systems, including urban intersections, highway curves, bridge entrances, construction zones, and other locations requiring enhanced visual safety warnings.
Its independent solar operation and high visibility design make it suitable for both permanent installations and temporary traffic control scenarios.
