Description
I. Product Overview

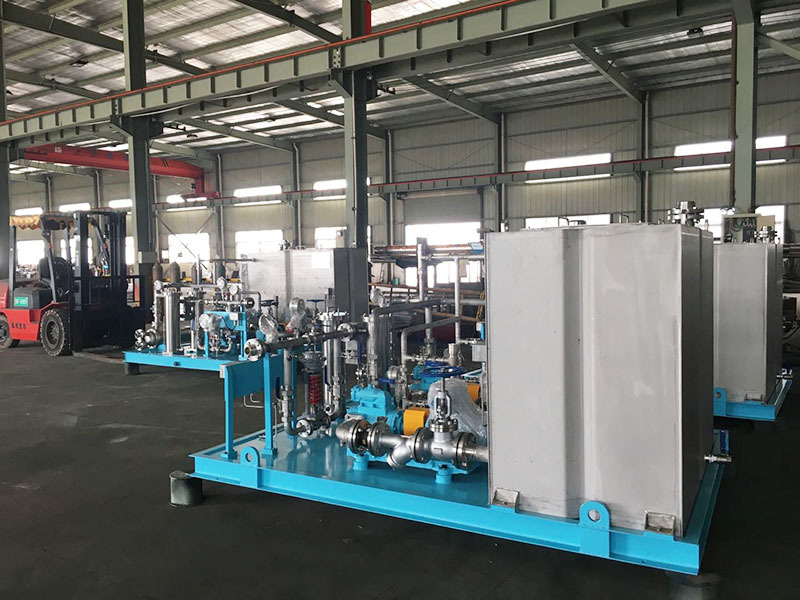

The reducer lubrication hydraulic system is an intelligent lubrication solution designed specifically for industrial reducers. Through precise delivery of hydraulic oil/lubricant, it ensures efficient operation of key components such as reducer gears and bearings, reduces wear and temperature rise, and extends equipment life. It is suitable for heavy-load applications such as mining, metallurgy, cement, wind power, and marine applications.
II. Core Functions and Advantages
1. Precise Lubrication Control
· Uses a metering pump or intelligent distributor to deliver lubricant on demand, preventing over- or under-dosing.
· Optional flow sensor monitors lubrication status in real time.
2. Efficient Cooling and Filtration
· Integrated oil cooler (air or water) effectively controls reducer operating temperature.
·Multi-stage filtration system (≤10μm accuracy) to prevent impurities from damaging precision components.
3. Intelligent Monitoring and Alarms
· Equipped with pressure, temperature, and liquid level sensors, supporting PLC or IoT remote monitoring.
· Automatic alarm for abnormal conditions (such as insufficient oil pressure or excessive oil temperature).
4. Energy Saving and Environmental Protection
· Low-energy hydraulic pump design reduces energy waste.
· Sealed oil tank structure prevents leakage and contamination.
5. Modular Design
· Supports customized configurations (such as explosion-proof and high-viscosity oil compatible).
· Compact structure for easy installation and maintenance.
Ⅲ、Technical Parameters
|
Project |
Parameter Range |
|
Working Pressure |
0.2~20MPa (adjustable) |
|
Applicable Oils |
ISO VG 68~460 industrial gear oil |
|
Flow Range |
0.1~50L/min (optional) |
|
Filtration Rating |
5~25μm (configured according to needs) |
|
Operating Temperature |
-20°C to 80°C (High-temperature model customizable) |
|
Power Supply Voltage |
220V 380V AC or 24V DC |
IV. Application Scenarios
Heavy Industry: Lubrication of rolling mills, crushers, and conveyor belt reducers.
New Energy: Long-term lubrication and maintenance of wind turbine gearboxes.
Port Machinery: High-pressure lubrication systems for gantry cranes and quay crane reducers.
Automated Production Lines: Precision lubrication of robot joint reducers.
V. Service and Support
Customized Design: Provide exclusive solutions based on reducer model and operating conditions.
After-Sales Guarantee: Global technical service network, rapid response to maintenance needs.
