Description

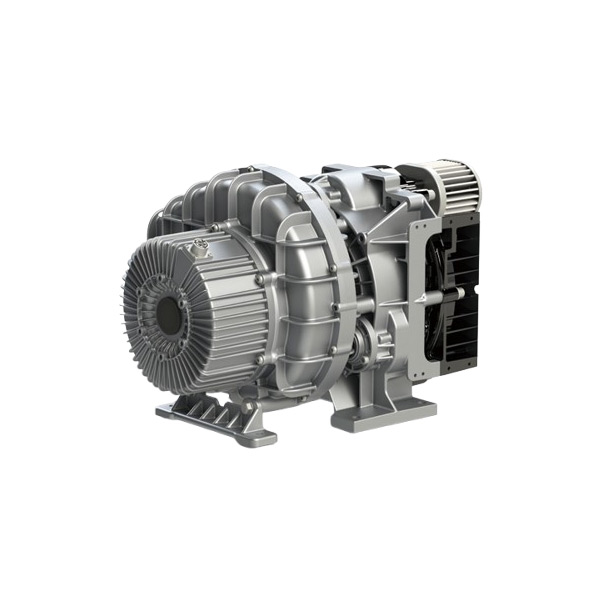

Oil Free Scroll Compressor PM Air End 2.2KW-5.5KW
China Advanced Permanent Magnet technology
-
Energy conservation, changing the traditional indirect drive method of belts.
-
The air end is lightweight, with its volume and total weight reduced by half compared to the belt type.
-
The compressor occupies a smaller area.
-
Improvement in the stability of the air end：The PM motor is mounted directly on the main shaft without splines and couplings in the middle.
-
PM variable-frequency motor, using inverter technology, can more stably solve problems of different voltages and frequencies.
Low Cost Maintenance
The scroll compressor air end has few vulnerable parts, significantly reducing the possibility of part replacement. At the same time, the replacement cycle of spare parts is long, it is convenient to use, requires less maintenance work, and has low maintenance costs.
Under normal circumstances, it includes three parts of maintenance.
(1) Air Filter : Per 2500 hours / 6 months replace.(Depends on the specific usage condition)
(2) Add Grease: Per 5000 hour / 2 years add
(3) Replace Tip Seal: Per 5000 hour / 2 years replace
