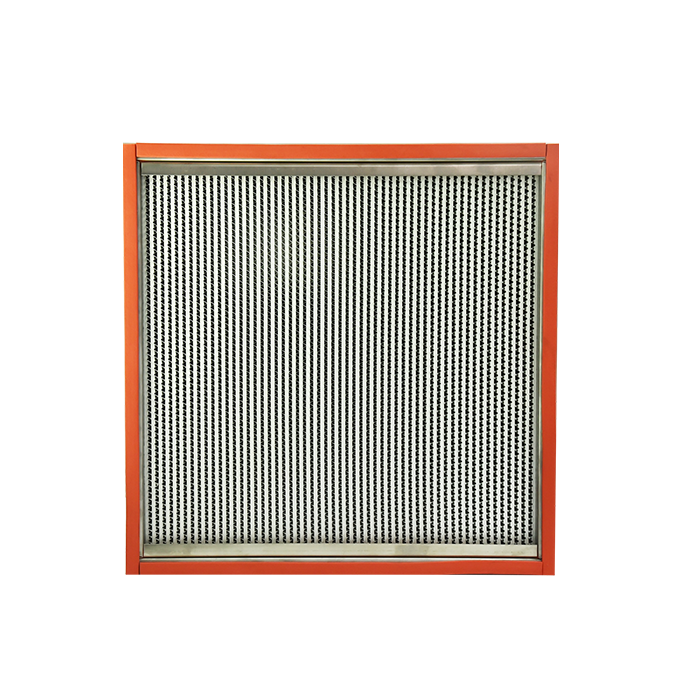

Description
The filter material is high temperature resistant ultra-fine glass fiber
filter paper, and the separator is aluminum foil corrugated sheet. The filter
paper is fixed and sealed in the outer frame of the SS304 stainless steel plate
with special high-temperature resistant silicone or ceramic glue. The
installation sealing material is silicone rubber, PTFE or glass fiber cotton.
There are various specifications such as temperature resistance 250 ° C, 280 °
C, 350 ° C for customers to choose. Mainly used in equipment and systems
requiring high temperature air purification such as tunnel ovens and ultra-clean
ovens.
|
Frame |
Stainless steel |
|
Spacers |
Aluminum foil |
|
Filter media |
Glass fiber |
|
Gasket |
High-temp resistant silica seal strip |
|
Operation conditions |
<80%RH |
|
Model |
Dimensions(mm)(L×W×D) |
Rated airflow(m³/h) |
Nitial pressure drop(Pa) |
Final pressure drop(Pa) |
Efficiency@MPPS |
|
NGB484.484-150H14 |
484×484×150 |
600 |
220 |
450 |
99.995%≤E<99.9995% |
|
NGB610.610-150H14 |
610×610×150 |
1000 |
|||
|
NGB610.610-180H14 |
610×610×180 |
1200 |
|||
|
NGB484.484-220H14 |
484×484×220 |
1000 |
|||
|
NGB610.610-220H14 |
610×610×220 |
1500 |
|||
|
NGB610.610-292H14 |
610×610×292 |
2000 |
Product Advantages:
-
Maximum continuous operating temperature: 350°C!
-
Maximum instantaneous operating temperature: 400°C!
-
Capture efficiency: 99.97%.
-
Customizable filtration efficiencies available.
-
Suitable for ultra-clean ovens, tunnel sterilization, and other purification equipment.
-
High-temperature filter paper that does not shed fibers or decompose under high temperatures.
-
Aluminum foil spacers, silicone rubber seals, and stainless steel frames to meet high-temperature requirements.
-
Reinforced edges with stiffeners to meet strength requirements.
Product Schematic Diagram:
