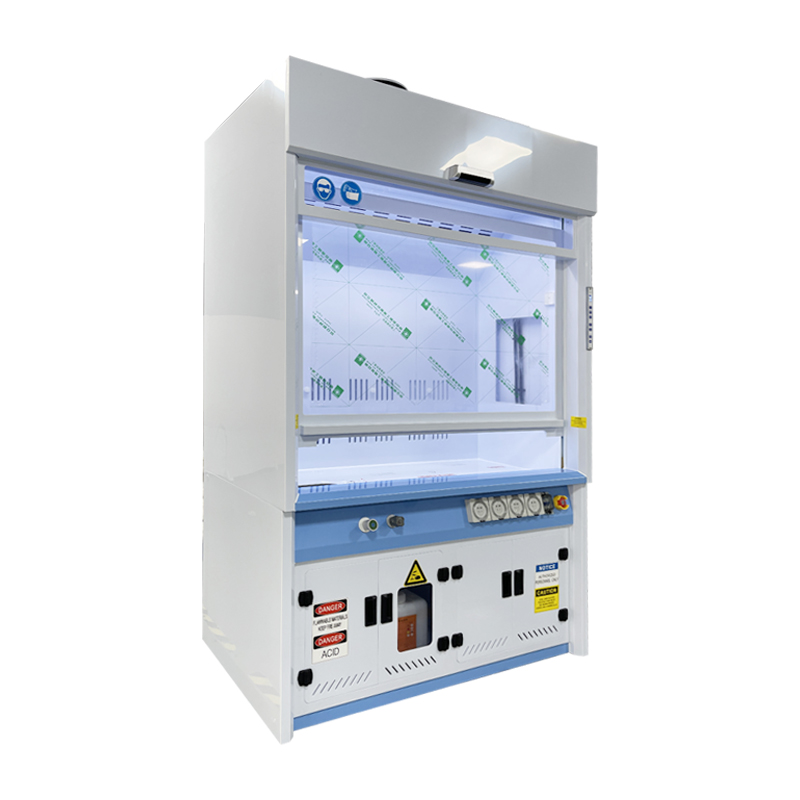

New Ventilation Cabinet

Description

1. Anti acid and alkali fume hood, made of flame-retardant PP board, with anti-static treatment for the countertop, with a surface resistivity of 10 ^ 5-10 ^ 9 ohms

2. sliding doors: Adopting a top and bottom balanced sliding door, the window is made of 6T transparent PVC acid resistant board, ensuring that the sliding door can slide up and down freely or be fixed in any position..

3. working faces: flame retardant PP board (thickness 10mm, load-bearing capacity of 80kg or more), reinforced treatment.

4. GUN: One DIW GUN3/8 and one 1/4 N2 GUN are installed on the left side of the front

5.5 PVDF faucet

6. VAV variable air volume control system.

7. Lighting: Install a set of fluorescent lamps on the top to ensure an illumination of over 700Lux

Product Name: New Ventilation Hood
Model	WL-N90PP-PRO	WL-N120PP-PRO	WL-N150PP-PRO	WL-N180PP-PRO
Serial number	1563-024-00NX
External dimensions	(W)900* (D)850* (H)2275mm	(W)1200* (D)850* (H)2275mm	(W)1500* (D)850* (H)2275mm	(W)1800* (D)850* (H)2275mm
Operation Space	(W)770* (D)680* (H)900mm	(W)1070* (D)680* (H)900mm	(W)1270* (D)680* (H)900mm	(W)1570* (D)680* (H)900mm
Material	PP/PVC
Noise	＜60dBA
Control system	Narrow edge strip controller/4.3-inch/7-inch LCD screen
Lighting	Economical LED light/800 LUX
Voltage	110/220V ,50/60HZ
VAV	Variable Air Volume VAV Control System/Optional
valve	Water cock/air cock/compressed air/optional
Electrically operated gate	Fully automatic door control/optional
Electric air valve	φ160mm/φ250mm/φ315mm
Manufacturer	KSXRW.CO.，LTD
Country of manufacture	MADE IN CHINA

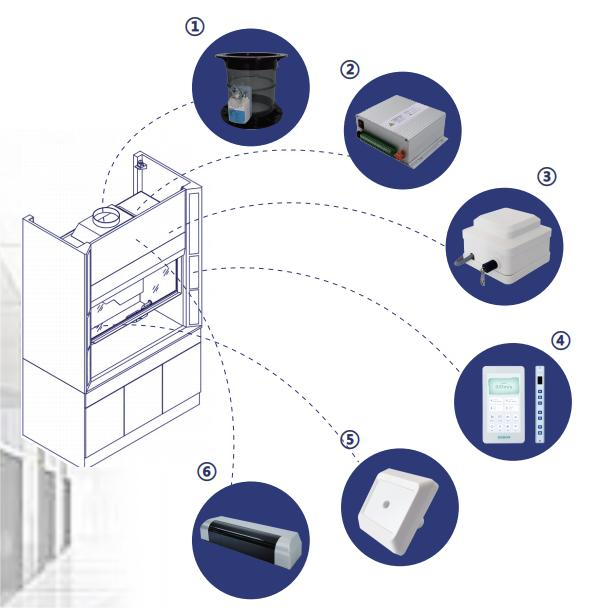

Performance Introduction: Dual state control is achieved through displacement sensors and surface wind speed detection to maintain a constant surface wind speed. The standard surface wind speed is set to 0.5m/s with people and 0.3m/s without people. The surface wind speed control is precise to the airflow control signal of ± 55, and the system response time is less than 1 second.
