Description

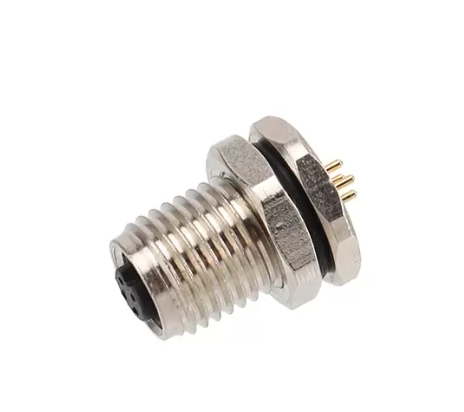

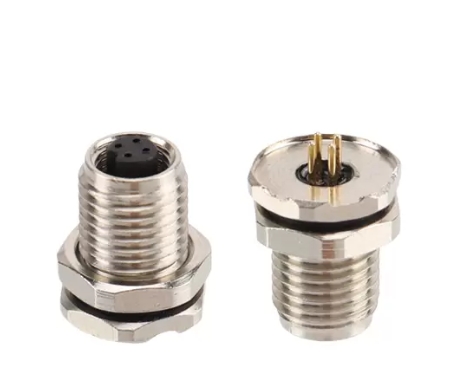

Product information
MECHANICAL PARAMETERS
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Phosphorus copper gold-plated/Brass copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-105 |
M5 ELECTRICAL PARAMETERS
Electrical diagram
DIMENSION DRAWING
M5 PCB PINS ARRANGEMENT
