Home / Mechanical Equipment & Tool Parts / Industrial equipment / LZDA/LZDB Side Plate Vibration Motor

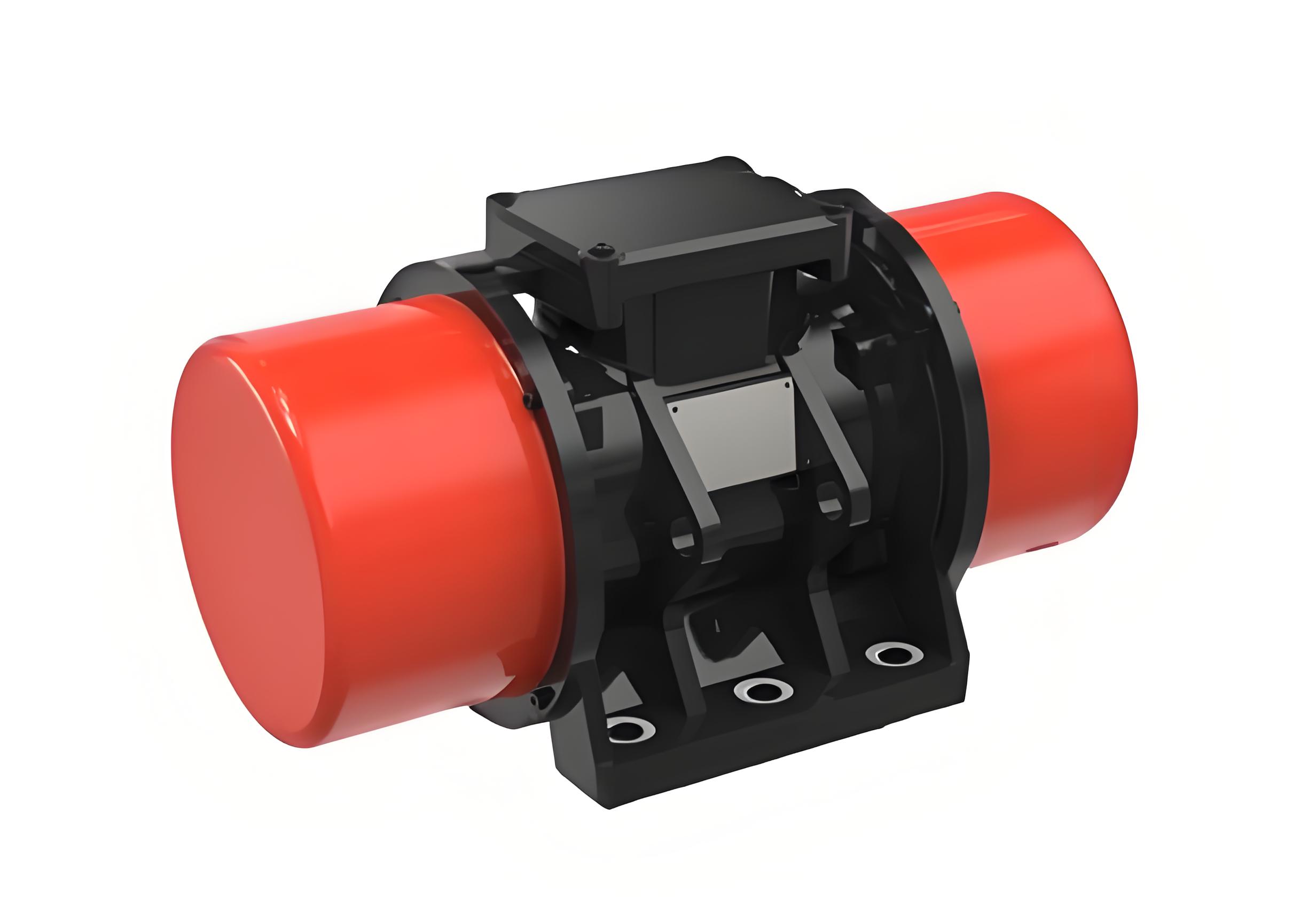

LZDA/LZDB Side Plate Vibration Motor

1. The excitation force range is 0-350KN and can be adjusted from 0-100%.2. Mechanical protection level: IP55 insulation level: B、F 。

Category: Industrial equipment
Share This :
  • Description
  • Reviews (0)

Description

A B
C D E F

<td

Reviews

There are no reviews yet.

Be the first to review “LZDA/LZDB Side Plate Vibration Motor” Cancel reply

Your email address will not be published. Required fields are marked *

Related products

  • Add To Cart
    Finned Tube

    Finned Tube

    A waterwall in a boiler is an furnace wall that is comprised of refractory and tubes in a water-tube boiler.The tubes are evenly spaced and generally connect to headers which in turn are connected back to the main generating bank of the boiler.

    Category: Industrial equipment
  • Add To Cart
    Flue gas heat exchanger

    Flue gas heat exchanger

    With the rebound consequences of human destruction of nature, such as Greenhouse Effect, air pollution, glacier melting and acid rain, as well as Chai Jing’s in-depth analysis of environmental pollution problems, prompted the department to start various provinces and cities to regulate the issue of waste discharge. Among them, the emission of flue gas is a more prominent and obvious problem of environmental protection and energy saving. The resulting gas heat exchanger has this effect.

    Category: Industrial equipment
  • Add To Cart
    TEG Cleaning Furnace for Clean Filter Plateand Spinneret in Nonwovens Fabrics Industry

    TEG Cleaning Furnace for Clean Filter Plateand Spinneret in Nonwovens Fabrics Industry

    The spinnerets are first placed in a boiling solution containing 15-20%NaOH for 2 to 3 hours to remove most of the polymer on the plate.The plate is placed in a triethylene glycol solution at 260-280C,keeping for 12 hours, and then cooled.

    Category: Industrial equipment
Recent
  • LED Display Manufacturer ShowtechLED: Complete Product Guide
  • Spout Pouch Filling Machine: ±0.5% Accuracy, CE Certified
  • New Energy Cabinet Insulating Posts: Dowe Electric 2026
  • Pure Electric Press Brake Bending Machine
You May Be Interested
  • Wireless Audio System Multiroom 360 $2,299.00
  • Laptop R752LJ 17,3” 5200U 4GB 1TB $1,100.00
  • YApple MacBook 12 $1,000.00
  • Notebook Widescreen Y700-17 GF790 $1,000.00
Product
  • Men's outdoor jacket
  • White NX Mini F1 SMART NX $300.00 Original price was: $300.00.$200.00Current price is: $200.00.
  • Panel Load Box in China
  • Double Fan Vehicle Air Conditioners
Proudly powered by WordPress | Theme: eCommerce Lite by Spiderbuzz.
    • Home
    • News
    • Shop
    • Contact Us
Horizontal Motor – Technical Data and Installation Dimensions
Model Vibration frequency Excitation force Power Electric current Weight Installation size (mm) LZDA LZDB Drawing No
r/min   N Kw A Kg P M N φd G D L2 F L L1 L L1 LZDA LZDB
10-4 1460  10  0.55  1.6  50  335  290  240  21  20  26  50  8  425  253  372  193  AC BC
15-4 15  0.75  1.9  90  370  330  280  21  24  36  60  8  501  297  432  228  AD BD
20-4 20  1.1  2.8  100  405  365  315  21  20  36  60  8  550  320  476  246  AD BD
32-4 32  2  4.7  108  405  365  315  21  20  36  60  8  570  330  496  256  AD BD
40-4 40  2.2  5.3  140  455  415  365  21  24  50  60  12  582  340  508  266  AD BD
50-4B 50  2.5  6.3  158  455  415  365  21  24  50  60  12  622  360  548  286  AD BD
50-4 50  2.5  6.3  216  500  450  400  21  30  60  60  12  678  386  599  308  AE BE
75-4 75  4  10  296  530  480  430  21  30  60  60  12  687  390  610  313  AE BE
100-4 100  6  14.5  400  595  540  480  26  35  60  60  18  754  435  679  360  AE BE
5-6 980  5  0.4  1.2  51  335  290  240  21  20  26  60  8  425  253  372  193  AC BC
8-6 8  0.55  1.7  56  335  290  240  21  20  26  60  8  472  273  412  213  AC BC
10-6 10  0.75  2.2  83  370  330  280  21  24  36  60  8  501  297  432  228  AD BD
15-6 15  1.1  3.2  93  370  330  280  21  24  36  60  8  561  327  492  258  AD BD
20-6 20  1.5  3.8  113  405  365  315  21  20  36  60  8  625  355  556  286  AD BD
20-6Z 20  1.5  4.8  105  405  365  315  21  20  36  60  8  665  375  596  306  AD BD
26-6 26  1.9  5  129  405  365  315  21  20  36  60  8  686  386  616  316  AD BD
30-6 30  2.2  5  163  455  415  365  21  24  50  60  12  623  360  550  287  AD BD
40-6 40  3  7.5  173  455  415  365  21  24  50  60  12  643  371  568  296  AD BD
50-6B 50  3.7  9.5  203  455  415  365  21  24  50  60  12  688  396  608  316  AD BD
50-6BZ 50  3.7  9.5  185  455  415  365  21  24  50  60  12  722  410  648  336  AD BD
50-6 50  3.7  9.5  233  500  450  400  21  30  60  60  12  700  394  629  323  AE BE
65-6Z 60  4.2  10.6  257  500  450  400  21  30  60  60  12  791  440  743  392  AE BE
75-6 75  5.5  13  299  530  480  430  21  30  60  60  12  817  450  750  383  AE BE
75-6Z 75  5.5  13  280  530  480  430  21  30  60  60  12  817  450  750  383  AE BE
100-6 100  7.5  18  412  595  540  480  26  35  60  60  18  840  481  759  400  AE BE
100-6Z 100  7.5  18  408  595  540  480  26  35  60  60  18  850  481  779  410  AE BE
120-6B 120  9.5  21.5  442  595  540  480  26  35  60  60  18  892  502  821  431  AE BE
120-6BZ 120  9.5  21.5  434  595  540  480  26  35  60  60  18  892  502  821  431  AE BE
120-6 120  9.5  21.5  600  700  650  580  26  40  60  60  18  897  506  823  432  AF BF
120-6Z 120  9.5  21.5  592  700  650  580  26  40  60  60  18  937  526  863  452  AF BF
140-6 140  12  28  640  700  650  580  26  40  60  60  18  937  525  863  452  AF BF
140-6Z 140  12  28  630  700
