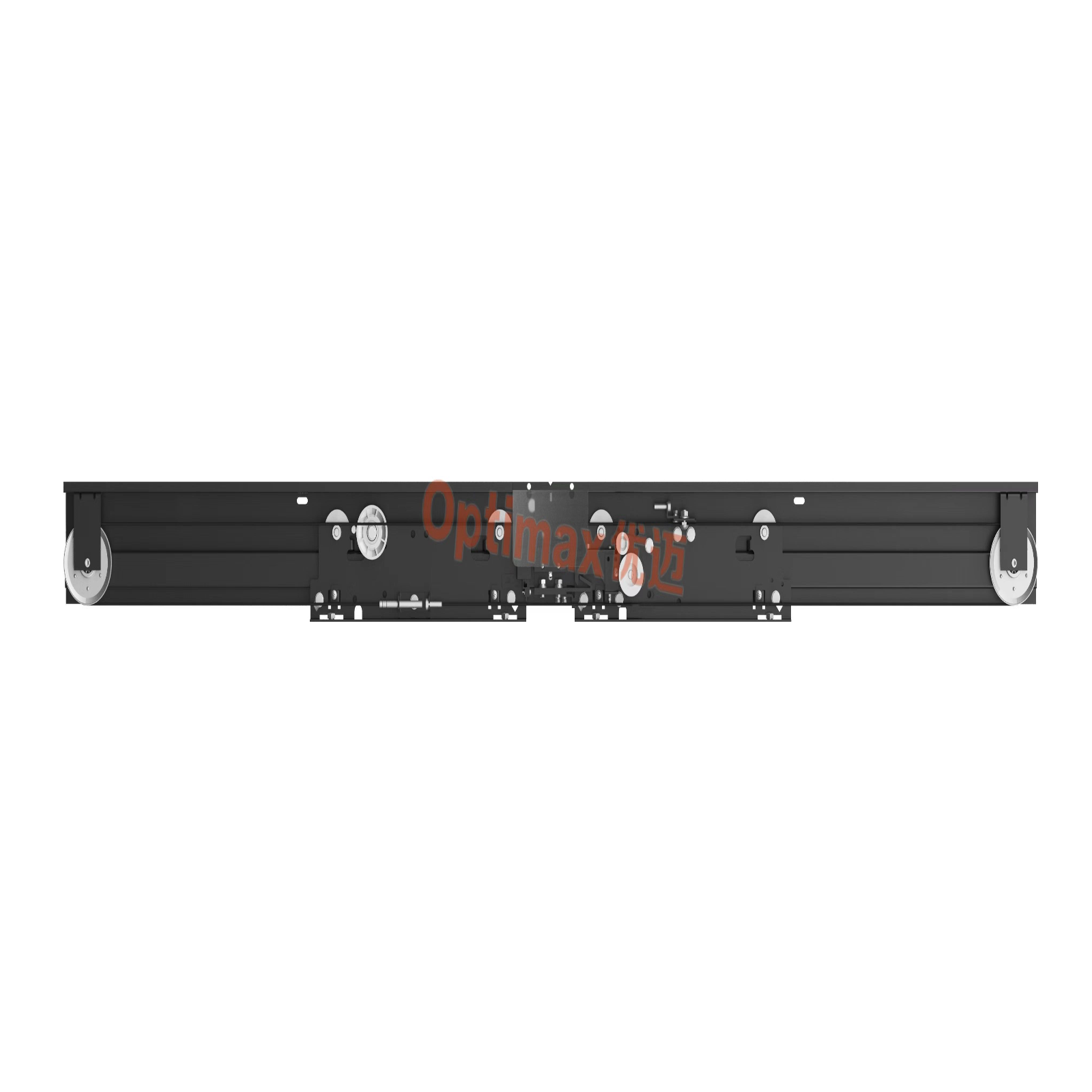

LLD3-O Center Open Landing Door System

Description

https://www.xizi-ec.com/LLD3-O-Center-open-landing-door-system.html

Type：Center Open Two Panel
Self-closing Type：Heavy hammer autistic
Sill Width：55mm
Hall Door Space：75mm
Speed: Maximum 2.5m/s
Match The Door Panel Material：Steel Door
OP（mm）：700-1200
OPH（mm）：2000-2400

This product is designed, tested and manufactured in accordance with higher standards than conventional passenger elevators. Matching door panel thickness 1.2mm. It has strong adaptability and matches various door operators and assembly line door panels of various manufacturers in the market. It has the advantages of compact structure, easy installation and debugging. The vulnerable parts are removable for convenient maintenance.

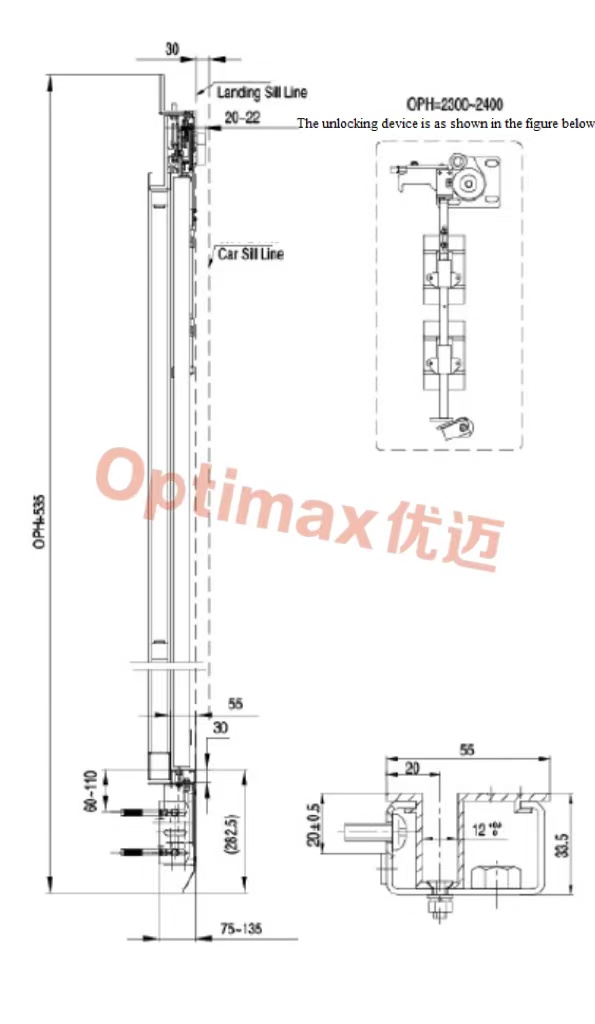

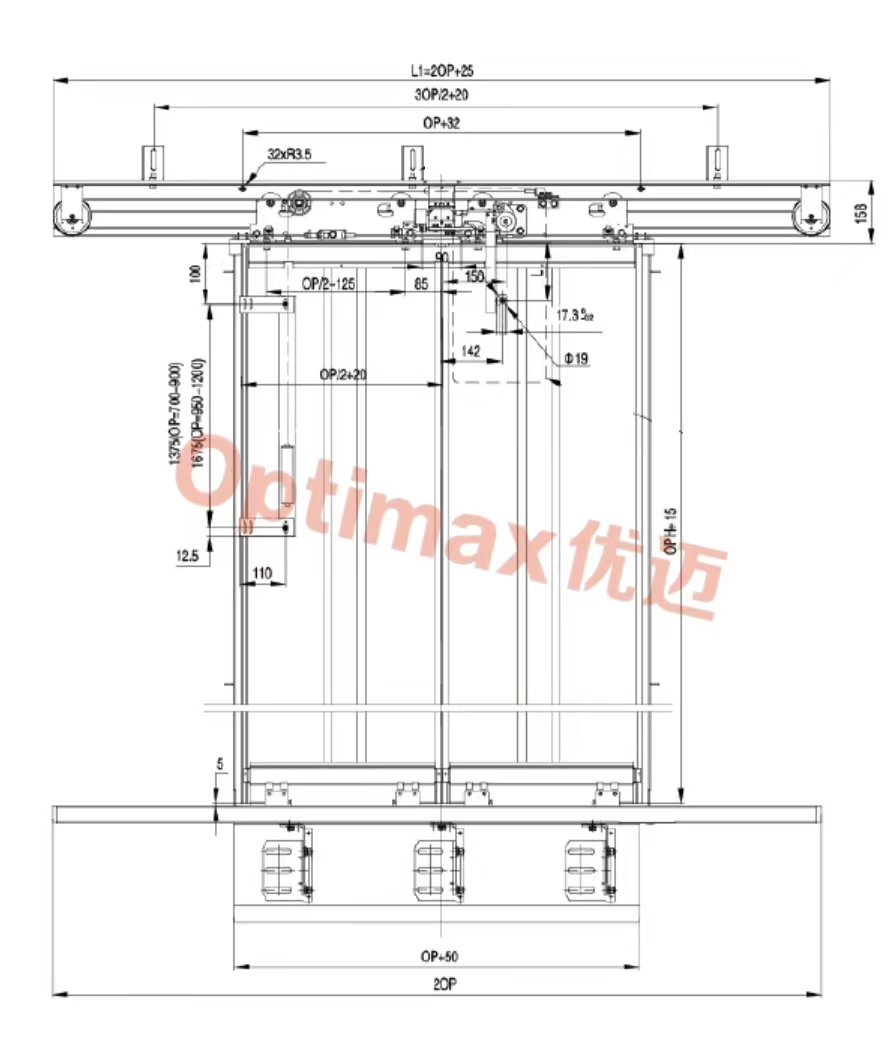

       Data Sheet                                                                                                                                    Unit：mm
