Description

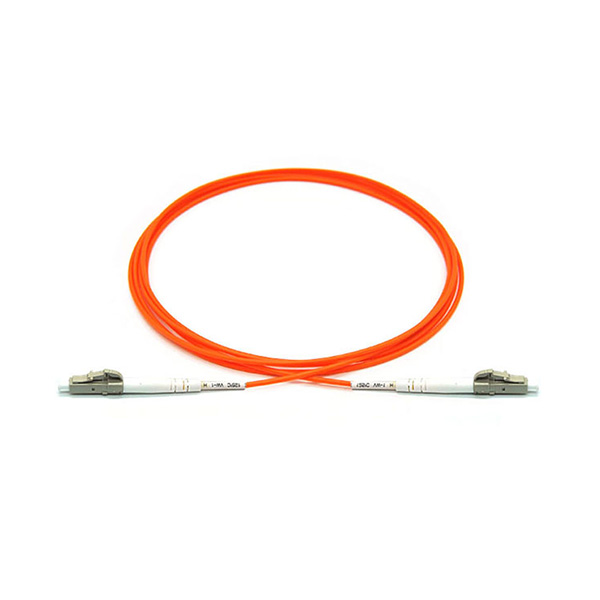

The Fiber Optic Patch Cord is designed for high-performance optical signal transmission in telecommunications, data communication, and network infrastructure applications.
Available in both single mode and multimode configurations, this fiber patch cable supports various connector types, fiber grades, and customized cable lengths to meet different installation requirements.
With precision-polished ceramic ferrules and stable optical performance, the product delivers low insertion loss, excellent repeatability, and reliable operation under different environmental conditions.
Product Features
-
Available in Single Mode (SM: 9/125μm core) and Multimode (MM: 50/125μm or 62.5/125μm core) fiber options.
-
Custom cable lengths available according to project requirements, including 0.5m, 5m, 10m, and other customized lengths.
-
Equipped with high-precision zirconia ceramic ferrules for stable alignment performance.
-
Supports PC, UPC, and APC polishing types to meet different optical connection requirements.
-
Provides low insertion loss, high repeatability, stable optical performance, and excellent temperature resistance.
-
Compatible with various connector interfaces for flexible deployment in different network environments.
Applications
The Fiber Optic Patch Cord is widely used in:
-
FTTX networks
-
Data transmission systems
-
Telecommunications infrastructure
-
CATV networks
-
LAN / MAN / WAN systems
-
Optical testing and measurement equipment
Product Specifications
| Specification | Single Mode (UPC) | Single Mode (APC) | Multimode (UPC) |
|---|---|---|---|
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB |
| Return Loss | UPC ≥50dB | APC ≥60dB | N/A |
| Test Wavelength | 1310/1550nm | 1310/1550nm | 850/1310nm |
Connector and Fiber Configuration
| Item | Specification |
|---|---|
| Connector Types | FC, SC, ST, LC, E2000, MU, MTRJ, DIN, D4, SMA, etc. |
| Ferrule Material | Zirconia Ceramic |
| Ferrule Concentricity | <0.5μ or <1μ (SM), <1μ (MM) |
| Jacket Material | PVC, LSZH |
| Cable Structure | Simplex, Duplex, 4 cores, 6 cores, 12 cores, 24 cores, etc. |
| Cable Diameter | 0.9mm, 2.0mm, 3.0mm, etc. |
| Length | Customized |
Supported Fiber Types
Single Mode Fiber
-
9/125-G652D
-
9/125-G655
-
9/125-G657A
-
9/125-G657A2
-
9/125-G657B2
-
9/125-G657B3
Multimode Fiber
-
62.5/125-OM1
-
50/125-OM2
-
50/125-OM3
-
50/125-OM4
-
50/125-OM5
Available Fiber Brands
-
YOFC
-
Corning
-
Other fiber brands available upon request
Optical and Mechanical Performance
| Parameter | Specification |
|---|---|
| Radius of Curvature (Ф2.5mm UPC) | 10-25mm |
| Radius of Curvature (Ф2.5mm APC) | 5-15mm |
| Radius of Curvature (Ф1.25mm UPC) | 7-25mm |
| Radius of Curvature (Ф1.25mm APC) | 5-12mm |
| Apex Offset | ≤50μm |
| Spherical Fiber Height (Ф2.5mm APC & UPC, Ф1.25mm UPC) | -100~+50nm |
| Spherical Fiber Height (Ф1.25mm APC) | -100~+10nm |
| Plug Durability | >1000 times |
| Tensile Strength | 100N for 10 minutes |
| Repeatability | IL change ≤0.1dB, RL change <5dB |
Environmental Performance
| Parameter | Specification |
|---|---|
| Operating Temperature | -40℃ to +80℃ |
| Storage Temperature | -40℃ to +80℃ |
| Fire Resistance | IEC 60794-2-30 |
Standards Compliance
The Fiber Optic Patch Cord complies with international requirements, including:
-
RoHS
-
IEC standards
-
GR-326 standards
These certifications ensure reliable optical performance, safety, and compatibility for professional network applications.
Product Advantages
-
High precision zirconia ceramic ferrule alignment
-
Low insertion loss and stable optical transmission
-
Multiple connector and fiber options available
-
Flexible customization of cable length and structure
-
Suitable for various communication and data network environments
-
Reliable performance under wide temperature conditions
Summary
The Fiber Optic Patch Cord provides a reliable and flexible optical connection solution for telecommunications, data communication, and FTTX applications. With multiple fiber types, connector options, customized configurations, and stable optical performance, it meets the requirements of modern high-speed communication networks.
