Description
Product Overview

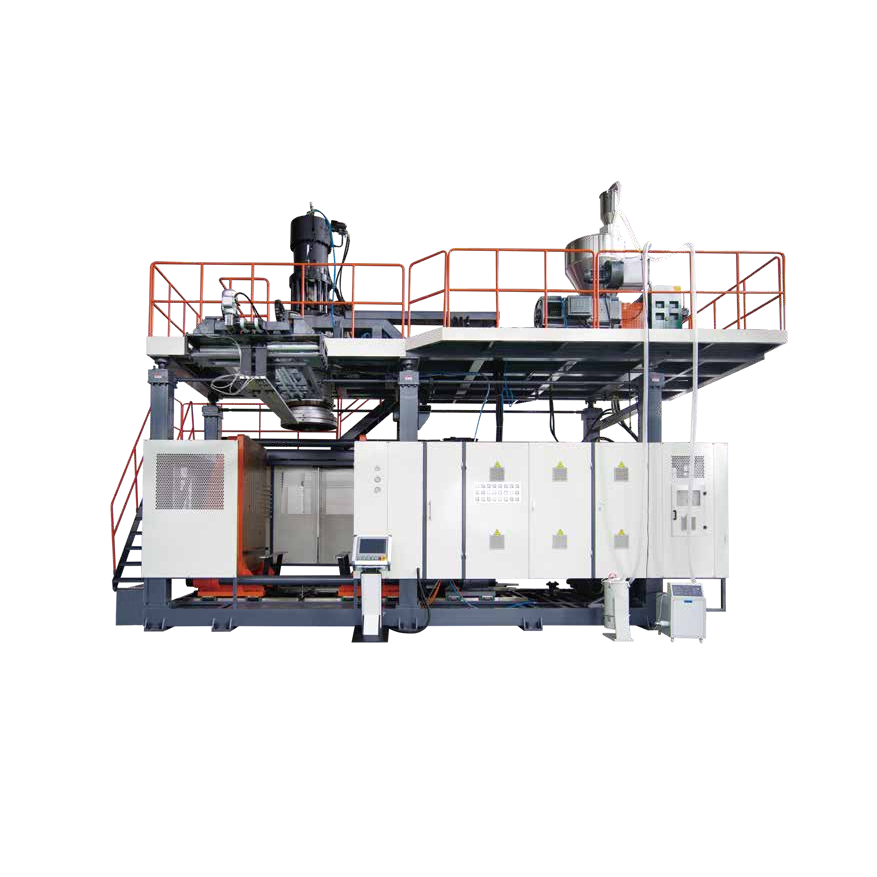

The JWZ-BM500/1000 blow molding machine for ocean floating is engineered for manufacturing large HDPE floating products used in marine engineering, aquaculture, docks, and offshore applications. Designed with a high-output extrusion unit and an accumulating die head, the machine delivers stable melt flow, excellent wall thickness distribution, and reliable forming performance for large hollow products.
Product Features
The machine adopts a high-output extrusion system combined with an accumulating die head, ensuring consistent material supply for large-volume products. A hydraulic servo control design provides precise movement, improved energy efficiency, and stable operation during long production cycles.
Optional functions include bottom sealing, automatic product ejection, and core-pulling movement, allowing manufacturers to configure the machine according to different product structures. An optional double-layer co-extrusion configuration is also available to improve product performance while optimizing raw material utilization.
Performance Advantages
The JWZ-BM500/1000 offers excellent plasticizing capacity, smooth extrusion, and stable molding accuracy. Its robust clamping structure ensures reliable mold positioning, while the accumulator technology helps produce thick-wall floating products with high dimensional consistency. The equipment is suitable for continuous production, reducing downtime and improving overall manufacturing efficiency.
Technical Specifications
| Model | BM500 | BM1000 |
|---|---|---|
| Die Head | Accumulating Type | Accumulating Type |
| Screw Diameter | 120/135 mm | 120×2 mm |
| Plasticizing Capacity | 350–450 kg/h | 550–650 kg/h |
| Drive Motor | 132 kW | 160 kW |
| Accumulator Volume | 26 L | 45 L |
| Servo Oil Pump Motor | 30 kW | 45 kW |
| Clamping Force | 800 kN | 1800 kN |
| Platen Size | 1020 × 2400 mm | 1600 × 2400 mm |
| Maximum Mold Size | 800 × 2500 mm | 1500 × 2500 mm |
| Total Power | 240 kW | 302 kW |
Applications
The JWZ-BM500/1000 blow molding machine for ocean floating is ideal for producing marine floating pontoons, floating docks, aquaculture floats, buoyancy components, and other large hollow plastic products requiring excellent strength, durability, and dimensional stability. Its flexible configuration and high production capacity make it an efficient solution for large-scale industrial manufacturing.
