Description
Productfeatures:

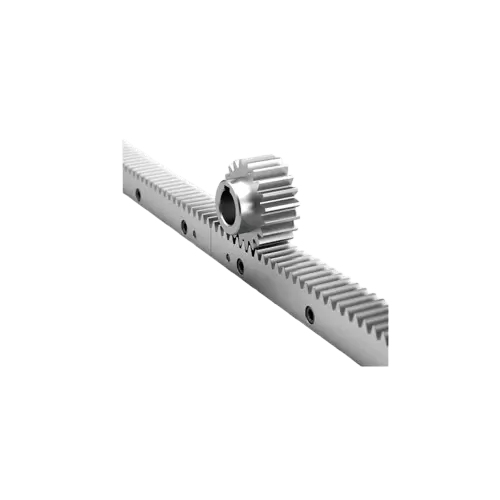

The standard spur rack features a 20°pressure angle and is precision-manufactured to deliver reliable linear motion in demanding applications. It is available in two material options: S45C medium carbon steel for superior strength and durability under high loads, and SUS304 stainless steel for excellent corrosion resistance in humid or chemically exposed environments.
Typical Applications:
Ideal for converting rotary motion to precise linear movement in:
· Industrial Automation: CNC machine tool axes, linear actuators, pick-and-place systems, and automated assembly lines.
· Woodworking & Machining: CNC routers, engraving machines, cutting equipment, and material feed systems.
· Packaging & Material Handling: Conveyor positioning gates, lifting mechanisms, and cartesian robot systems.
· Precision Instrumentation: Optical positioning stages, medical device mechanisms, and testing equipment.
This rack series offers a robust solution for applications requiring high rigidity, accurate linear guidance, and long-term operational stability.
| Product Name |
Spur Rack Pressure Angle 20° |
| Material | S45C/SUS304 |
| Product Model |
CD01AF/CD01AA/CD01AU |
| Tooth Profile | Spur Gear |
| Transport Package | Cartons |
| Trademark | iHF |
| HS Code | 8483900090 |
| Manufacturing Process | Casting |
| Surface Treatment | Blackening |
| Surface Color |
Black |
| Application | Industrial Automation and Robotics/Woodworking and Stone Processing/Construction Machinery and Logistics Equipment |
| Specification | Standard |
| Origin | Dongguan(Mainland) |
| Production Capacity | 500000 PCS/Year |
| Product | Standard Spur Rack |
| Customized | OEM, Drawings or Samples Customized |
| Tooth Profile | Spur Gear |
| Module | 1.0/1.5/2.0/2.5/3.0 |
| Length | 20~480 |
| Hole Machining | Bottom Threaded Hole(B)/Side Threaded Hole(S)/Side Counter-bore Hole(H)/No Hole(N) |
| Heat Treatment | HRC42~46 |
| Surface Treatment | Blackening |
| Material | S45C/SUS304 |
| Standard | DIN, ISO/GB, AGMA, JIS |
| Teeth Accuracy | DIN, ISO/GB Class 4, AGMA Class 13, JIS Class 0 |
| Weight | Max 15 Tons |
| Testing Equipment | Projecting apparatus, salt spray test, durometer, and coating thickness tester, 2D projector |
| Producing Equipment | CNC machine, automatic lathe macine, stamping machine, CNC milling machine,rolling maching, lasering, tag grinding machine etc. |
| Machining Process | Gear Hobbing, Gear Milling, Gear shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping |
| Application Industry | Robot industry, Medical industry, Making machine industry, Automation industry, 3C industry equipment, Packaging industry, UAV industry, New energy industry |
