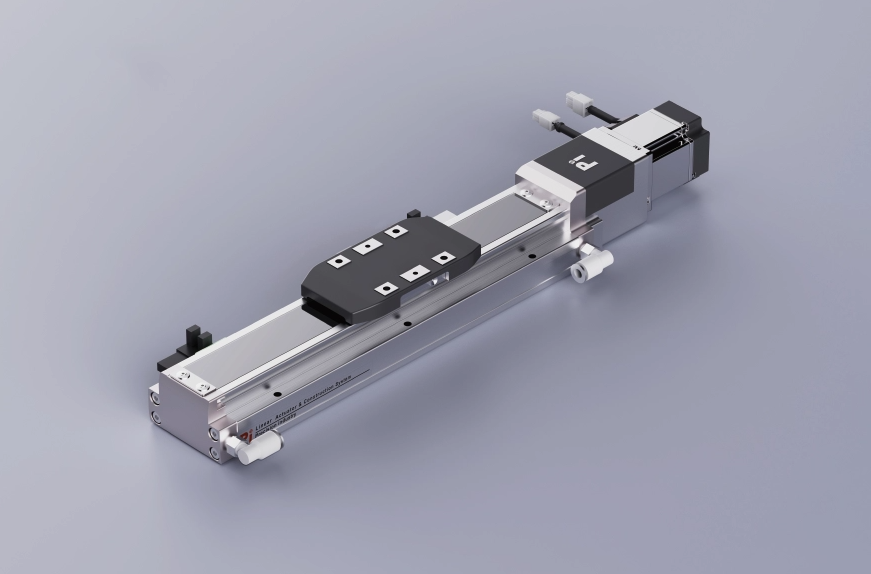

Description
Body width：60-200mm
Repeatability：±0.005/0.01mm
Horizontal Load：30kg
Vertical Load：15kg
Maximum Speed：250mm/s
Travel Range：50-800mm
Set the motor acceleration and deceleration to0.2seconds.
The standard specifications cannot be applied for the use of inverted cranes. If you have any requirements, please contact us by phone or leave a message online.
Delivery time: 7-10 days
Four column ball design – improved accuracy
Without gaps, it can move lightly and easily to the "circular arc groove", which is easy to maintain high precision for a long time.
The internal slider can achieve the same rated load in all four directions, and can be used in any direction.
High rigidity, high precision, low friction, high speed motion load capacity, long service life.
The internal slider can achieve the same rated load in all four directions, and can be used in any direction.
High rigidity, high precision, low friction, high speed motion load capacity, long service life.
More compact structure
Compared to traditional products, the product size has been reduced. It is easy to assemble into equipment and also contributes to the miniaturization of the equipment itself.
Long journey
A four-column ball-screwed embedded slide table with a travel range of up to 3000mm and a maximum speed of 2200mm/s,
Simple maintenance – extremely low cost
The entire series can be externally lubricated without removing the cover. It features a self-lubricating oil storage system with a special steel belt structure design.
Spec Index of Electric Actuator
