Description

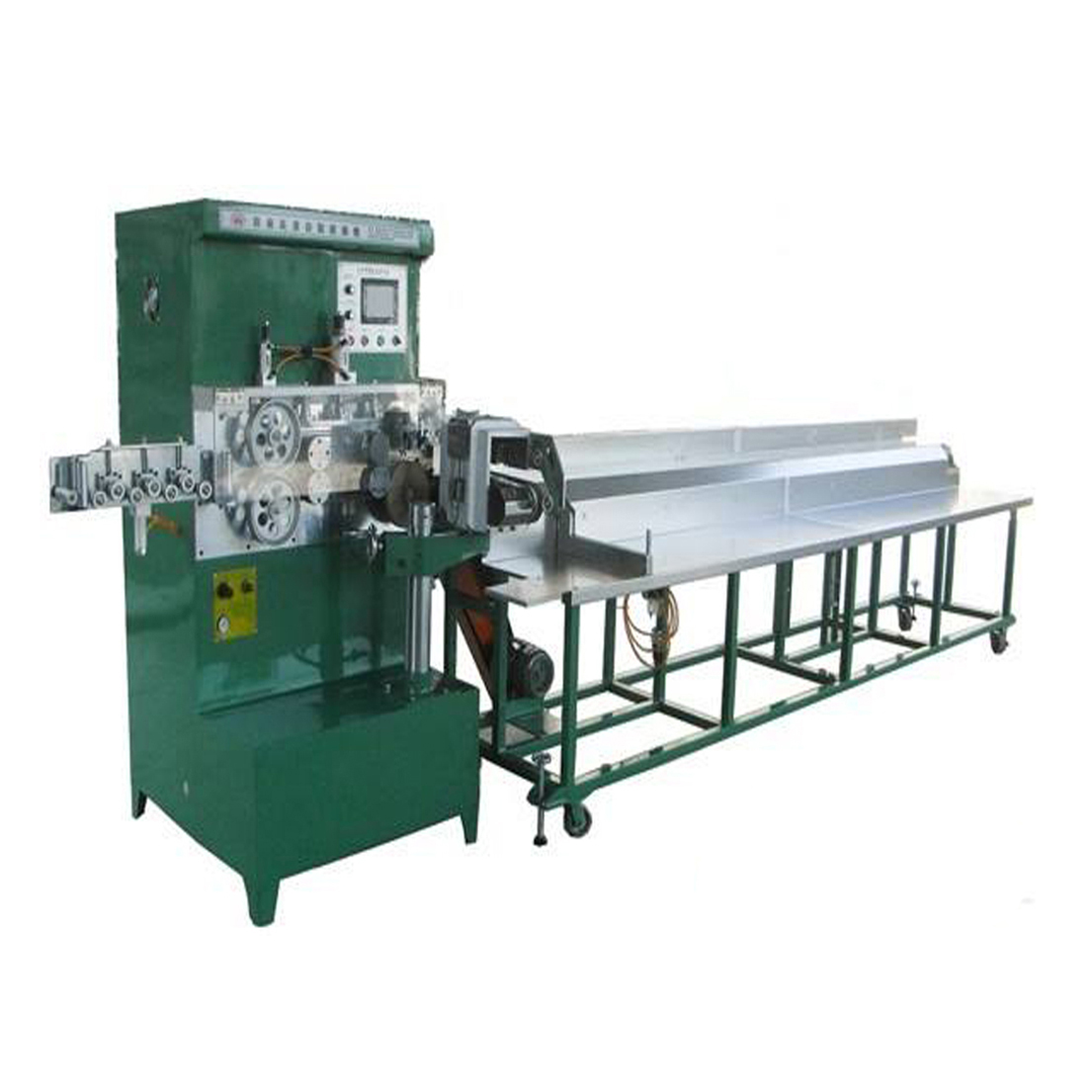

This machine can be equipped with a large-spindle alignment frame for
independent wire cutting, and it can also be linked with the extrusion machine
production line for coordinated wire cutting. The wire cutting speed is fast and
the cutting strength is strong. This machine mainly adopts the principle of an
external extrusion machine. Especially for HDMI cables, during the wire cutting
process, the internal structure of the cables will not be damaged. The wire
cutting power is driven by a servo motor and is controlled by a servo
controller, making the cutting length more precise.
| Model | Automatic high-speed wire cutting machine | |||
| Cutting speed | 150-200m/min | |||
| Cutting ability | Round wire：φ3.0mm-20mm Flat wire：2*4.5-4.0*11 | |||
| Cutting length | Min 100mm，Max no limited | |||
| Cutting precise | ±3mm | |||
| Take-up type | Flat belt draw forth | |||
| Pay-off type | Big-axis active pay-off/Big-axis passive pay-off/Linkage running with extruder | |||
| Machine power | Main engine：Servo motor 2.2kw/Delivery belt：Servo motor 0.75kw | |||
| Delivery length | Design can be customized according to customer requirements | |||
