Description

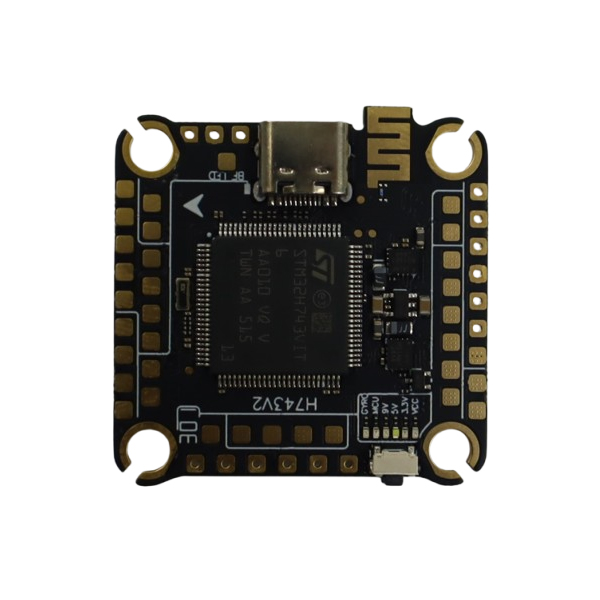

Flight Controller H743V2 China Manufacturer
MCU：STM32H743
Frequency：480MHz
GYRO：DUAL ICM-42688-P
OSD：AT7456E
Blackbox：128M Memory
Barometer：SPL06
Uarts：8 Set
Receiver：CRSF/SBUS/IBUS/DSM
I2C：Yes
F.Port：Yes
Buzzer Pad：Yes
CURR Pad：Yes
ESC Signal：8 Set
BEC 3.3V：0.5A
BEC 5V：3A
BEC 9V：3A
MB LED：Yes
BF LED：Yes
AIR UNIT Port：Yes
WIFI：SpeedyBee APP
VTX Switch：Yes
BEC Protection：Yes
Receiver Protection：Yes
TVS Protection：Yes
Input：3-6S Lipo
Soft Ware：Betaflight
Mounting：30.5×30.5mm/M3
Size：39.0×38.0x8.0mm
Weight：10.0g
