Description
| Product Appearance | |||
| Type | Spec. | Standard Configuration | Optional |

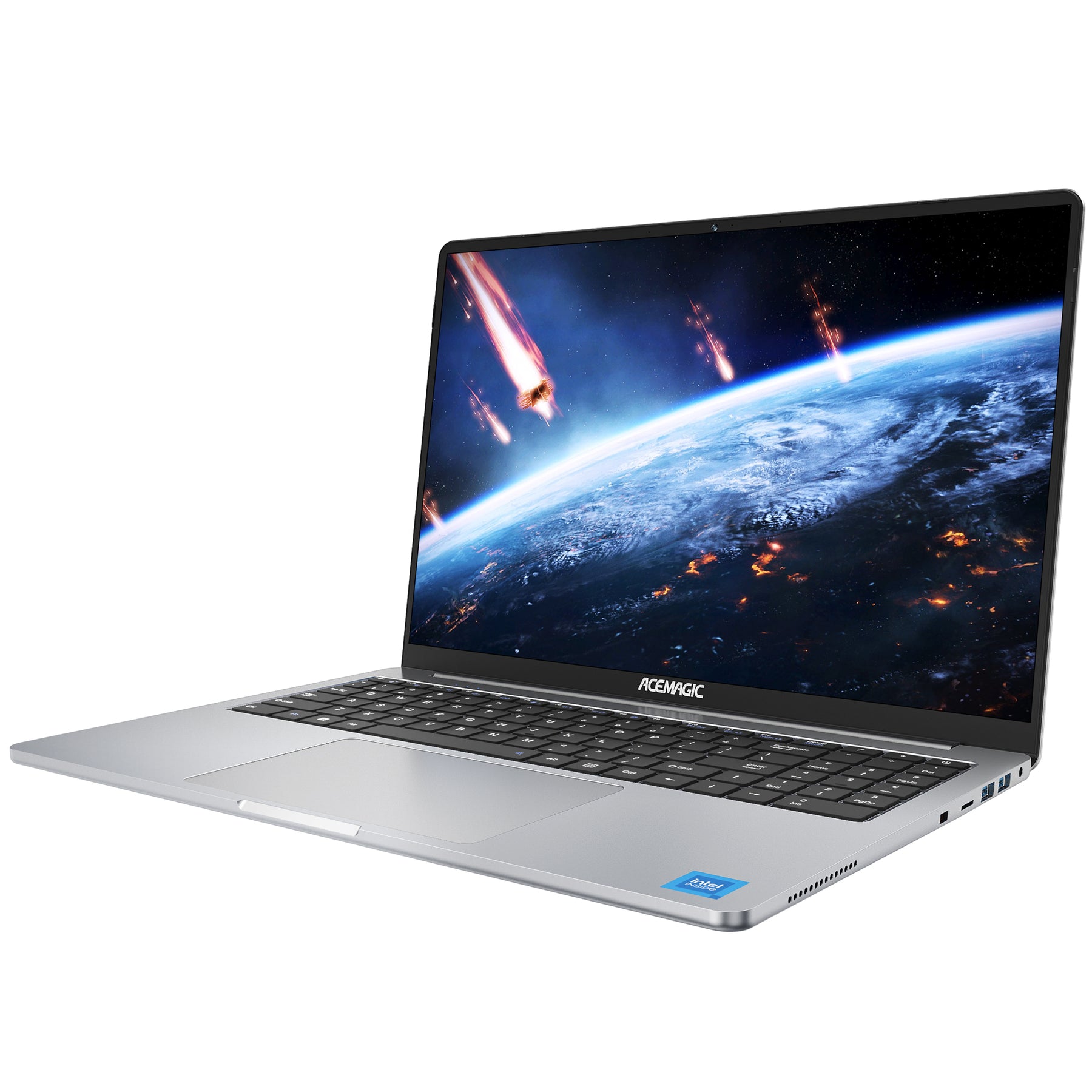

| Product | Product Type | notebooks | |
| Special | / | ||
| Dimension | 362*251.4*18.5mm | ||
| Case Material | Plastic | ||
| Opening and closing degree | 180° | ||
| Weight | 1.8kg | ||
| LCD | Screen Size | 16" | |
| Screen Resolution | IPS 1920*1080 EDP （16：9） | ||
| Screen-to-body ratio | Narrow border | ||
| brightness | 280lm | ||
| TP | touch panel | NA | |
| Battery | Type | Lithium-ion polymer battery | |
| Capacity | 7.6V/5000MAH （2S1P） | ||
| Battery life | 4 hours | ||
| System Hardware Configuration | |||
| Type | Spec. | Standard Configuration | Optional |
| CPU | Model | Twin Lake N150 | N100/N95/N97 |
| manufacturing process | 7nm | 7nm/7nm/7nm | |
| core | 4 cores and 4 threads | 4 cores and 4 threads | |
| cache | 6MB | 6MB | |
| Maximum speed | 3.6GHz | 3.4GHz / 3.4GHz /3.6Ghz | |
| power wastage | 6W | 6W/15W/ | |
| GPU | Model | Intel® Graphics | Intel® UHD Graphics |
| core | / | ||
| speed | 1.0GHz | 750 MHz / 1.2GHz/ 1.2GHz | |
| resolution | MAX：4096 x 2160@60Hz | ||
| Memory | Model | SODIMM DDR4*1 | |
| speed | MAX： 3200MHz | 3200MHz | |
| Capacity | Up to 16GB | Up to 16GB/16GB/32GB | |
| Storage | SSD Capacity | SSD(Up to 2TB) | |
| SSD Type | M.2*1 2280 NGFF (either NGFF or NVME) | Default: NGFF（SATA） | |
| 2.5 inch HHD | NO | ||
| TF card | *1 | ||
| RTC | BIOS Support | No support | |
| power-on | BIOS Support | No support | |
| diskless network | BIOS Support | No support | |
| TPM | CPU Integrated TPM | Supports TPM 2.0 | |
| multi-screen | video output | Support HDMI*1+LCD*1 two-screen simultaneous display under the system | |
| Camera | Front | 1MP 1280×800 | Optional 2MP |
| MIC | Camera integration | Digital MIC * 2 | |
| Speaker | Size | Built-in 4Ω/2W speaker x2 | |
| Gsensor | Gsensor | NA | |
| LED | status indicator | Blue for power on, red for charging | |
| Internet Connection | |||
| Type | Spec. | Standard Configuration | Optional |
| WIFI | Model | Onboard wifi5 | Optional WiFi 6 |
| protocols | IEEE 802.11 a, b/g, n, ac，ax | ||
| Bluetooth | Model | USB | |
| protocols | Support Bluetooth4.2 | BT 5.2 | |
| 3G | built-in | NO | |
| 4G | built-in | NO | |
| Ethernet | LAN1 | NO | |
| Interface | |||
| Type | Spec. | Standard Configuration | Optional |
| USB | USB2.0 | / | |
| USB | USB3.0 | USB3.2 Gen2 Type-A*1 10Gbps USB3.0 Type-A*2 5Gbps |
|
| TF | Expanded External Storage | *1 | |
| HDMI | video output | HDMI 2.0（Max 4K 60HZ)*1 | |
| DP | 4K audio and video output | NA | |
| VGA | video output | NA | |
| RJ45 | Gigabit Ethernet | NA | |
| Type C | data transmission | Type_C *1 usb2.0 480Mbps | |
| POWER | Power Button | x1 | keypad |
| DC IN | Power Supply Input | 3.5/1.35mm DC Jack x1 | Type-C charging is not supported |
| Audio-in/out | Audio-in/out | 3.5mm Phone Jack x1 （2-in-1 connector） | |
| Antenna1 | FPC Antenna | WiFi 2.4+5G+BT x1 | |
| Antenna2 | FPC Antenna | WIFI 5.0 | |
| keyboard | 98Keys，No backlight | ||
| Touch | Touchpad | 4 Fingers tap | |
| Fingerprint | NA | ||
| SIM | micro SIM | not support | |
| Software Configuration | |||
| Type | Spec. | Standard Configuration | Optional |
| OS | Version | Win11 | |
| Environment | |||
| Type | Spec. | Standard Configuration | Optional |
| Environment | Working Temperature | 0~40℃ | |
| Memory Temperature | -20~60℃ | ||
| Humidity | 90% @ 40 °C (no condensation) | ||
| Accessory | |||
| Type | Spec. | Standard Configuration | Optional |
| Power Supply | Desktop/Plug-in | Input 100~240V 50/60Hz Output 19V/2.1A DC Header 3.5*1.35mm | |
