Automatic Invisible Aligner Production Line

Description

Product Description

The Automatic Invisible Aligner Production Line is an advanced automated manufacturing system designed for large-scale clear aligner production. Integrating pressure thermoforming, laser marking, and robotic flexible trimming technologies, this complete production solution enables efficient, precise, and continuous manufacturing of invisible orthodontic aligners.

The production line supports roll film material feeding, automatic processing, and intelligent control, significantly improving production efficiency while reducing labor costs. With a capacity of up to 240 pieces per hour and 5000 pieces per day, it is an ideal solution for professional clear aligner manufacturers requiring high-volume production.

Main Advantages

Modular Production System

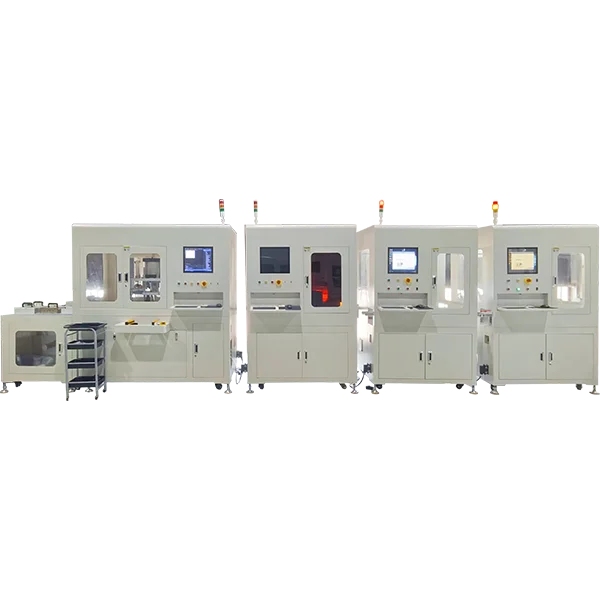

The production line consists of:

• 1 thermoforming machine

• 1 laser marking machine

• 2 automatic trimming machines

The modular structure allows each machine to operate independently or connect with other modules to form a complete automated production line. The flexible configuration makes installation, maintenance, and future expansion easier.

High Production Efficiency

• Continuous operation with one-time loading of roll film material

• Production capacity up to 240 pcs/hour

• Daily output up to 5000 pcs

• Automatic film feeding and cutting system available

• Reduced material waste and improved production efficiency

High-Quality Processing Performance

Designed specifically for invisible aligner manufacturing, the system meets high standards for orthodontic and aesthetic medical applications.

Features include:

• Precision thermoforming technology

• Uniform heating control

• Stable aligner thickness

• Bubble prevention system

• High-quality laser marking

• Burr-free robotic trimming

• Reduced manual polishing requirements

• Higher product pass rate and lower rework rate

Reduced Labor Requirements

The automated workflow minimizes manual operations. Only one operator is required for loading dental models and replacing film materials, reducing labor dependency by approximately 80% compared with traditional production methods.

Product Features

Roll Film Material Feeding

The automatic film feeding system uses roll material instead of traditional sheet materials, providing:

• Lower material cost

• Continuous production capability

• Higher utilization efficiency

• Reduced manual operation

Intelligent Pressure Thermoforming System

The thermoforming module ensures accurate and stable aligner forming.

Key features:

• Automatic dehumidifying material box

• Prevents bubbles during forming

• High-precision temperature control

• Even material heating

• Consistent aligner quality

AI-Based Laser Marking System

The laser marking position is calculated through an AI-powered deep learning algorithm based on digital tooth data.

Advantages:

• Precise marking position control

• Repetition accuracy up to 0.01mm

• Compatible with multiple clear aligner materials

• Stable and reliable marking performance

Intelligent Robotic Flexible Trimming

The automatic trimming system uses digital tooth data (STL files) to generate gingival line extraction and cutting paths.

Features:

• Automatic gingival line recognition

• Batch processing capability

• No manual teaching required

• Flexible robotic trimming

• Consistent cutting quality

Production Process

The automatic invisible aligner production workflow includes:

1. Roll film loading

2. Automatic thermoforming

3. AI laser marking

4. Intelligent trimming

5. Finished aligner output

The integrated process reduces manual handling and ensures stable quality during mass production.

Technical Specifications

Thermoforming Machine

• Dimension: 2900 × 1100 × 2000 mm

• Weight: 1050 kg

• Power: 3.5 kW

• Voltage: 220V

• Processing Capacity: 15 seconds/pcs

Laser Marking Machine

• Dimension: 1300 × 1100 × 2000 mm

• Weight: 470 kg

• Power: 2.5 kW

• Voltage: 220V

• Processing Capacity: 2 seconds/pcs

Automatic Trimming Machine

• Dimension: 1300 × 1100 × 2000 mm

• Weight: 520 kg

• Power: 3.5 kW

• Voltage: 220V

• Processing Capacity: 15 seconds/pcs

Applications

The Automatic Invisible Aligner Production Line is widely used for:

• Invisible orthodontic aligner manufacturing

• Dental laboratories

• Orthodontic product factories

• Digital dentistry production centers

• Large-scale clear aligner manufacturers

Why Choose Automatic Invisible Aligner Production Line?

• Complete automated clear aligner manufacturing solution

• Integrated thermoforming, marking, and trimming processes

• AI-assisted precision production

• High output capacity for mass production

• Reduced labor costs

• Stable product quality

• Flexible modular design

• Lower production costs

• Suitable for global orthodontic manufacturing needs

The Automatic Invisible Aligner Production Line provides an efficient and intelligent manufacturing solution for companies looking to scale clear aligner production with higher precision, productivity, and consistency.
