Description
Brief Introduction

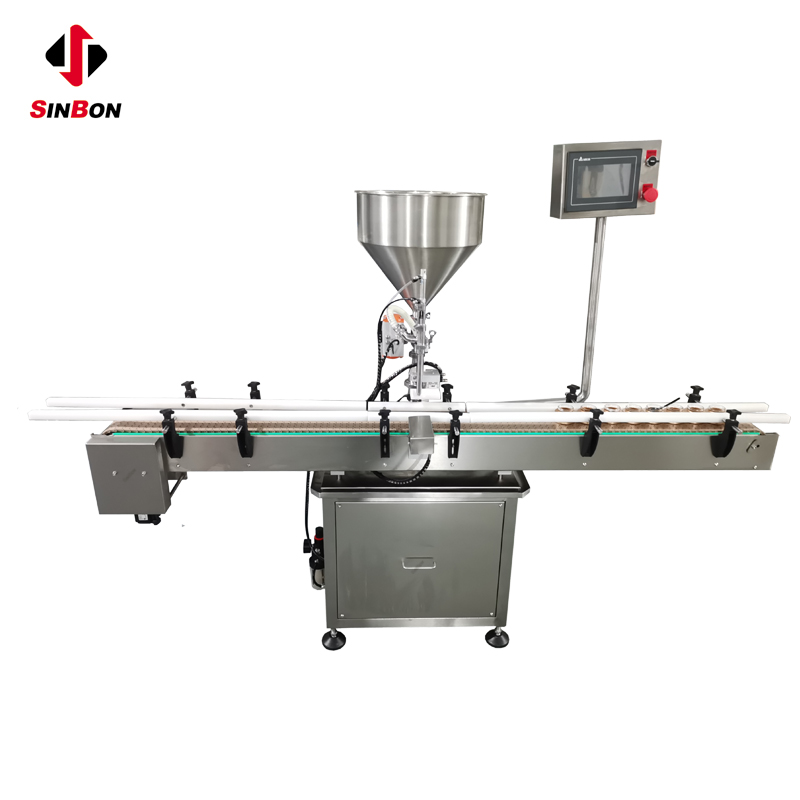

The fully automatic servo filling machine is an electrical and mechanically
integrated automatic filling equipment for dispenser both pastes and liquids.
The machine consists of a HMI, PLC, piston pump, pneumatic valve, hopper,
pneumatic nozzle and linear conveyor. It can realize automatic quantitative
filling liquid or cream paste to bottles and cans, mainly meeting the automatic
filling needs of the pharmaceutical industry, food industry, cosmetics industry
and other industries.
Features
Famous brand touch screen, PLC, servo motor, electrical components, etc. are
used to ensure machine system can working stable in long-term. The touch screen
interface is simple and intuitive, and the equipment can be used proficiently
without professionals.
All product parameters can be set on the touch screen
The piston pump (rotor pump, gear pump optional) is used for quantitative
filling, with high filling accuracy
The linear design is suitable for rapid adjustment and replace with various
size of bottles
Equipped with anti-drip tray to prevent material from dripping onto the
bottle or conveyor
The whole machine is compact, occupies a small footprint, and is equipped
with universal wheels for easy movement
The whole machine is made of stainless steel for easy cleaning and meet
requirements of food, pharmaceutical industries.
Application
Suitable for quantitative packaging of liquid and paste materials for
cosmetic, food, pharmaceutical products
Specification
|
Model No. |
DGF-100 |
|
Control System |
HMI+PLC+Servo |
|
Pump Type |
Piston Pump (Gear Pump/Rotor pump for option) |
|
Filling Range |
20-200ml (Tailor-made) |
|
Production Capacity |
50ml: 40BPM; 300ml: 20BPM |
|
Filling Accuracy |
±0.5% |
|
Nozzle Diameter |
Pneumatic nozzle Φ12mm |
|
Bottle Size |
Φ25-150mm |
|
Belt Width |
150mm |
|
Hopper Size |
30L |
|
Air Source |
0.4-0.6Mpa |
|
Power Source |
AC220V;50Hz;1P;1.5kw |
|
Dimension |
1500x700x1700mm |
|
Net Weight |
About 100kg |
|
Material |
SUS304 |
