Description
https://www.wdmlight.com/40G-100G-OEO-Repeater.html
The OEO optical amplification subsystem adopts the clock and data recovery
(CDR) chip design with the highest performance and flexibility in the industry.
It can perfectly realize the function of optical signal regeneration and
amplification, signal cleaning, and shaping with features of highly compact
structure, flexible configuration, and low power consumption.
Types of OEO Repeater
Features

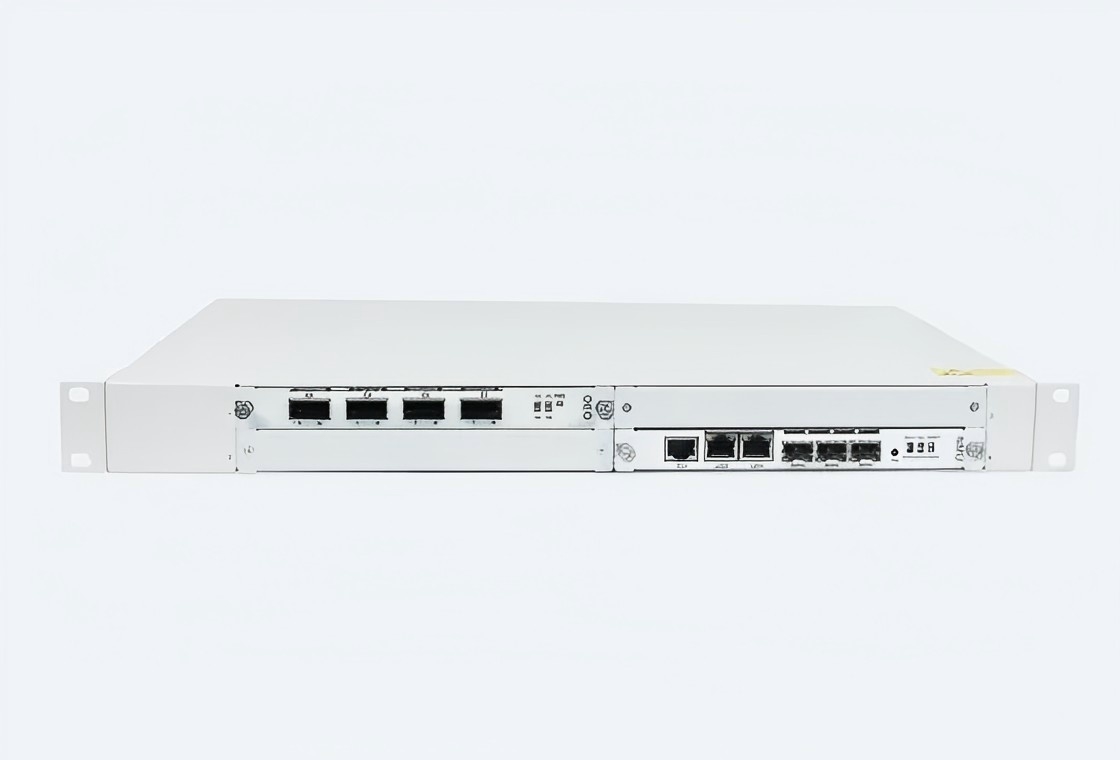

1U rackmount and pluggable chassis. 4 function board slots are supported and
boards can be flexibly configured based on requirements.

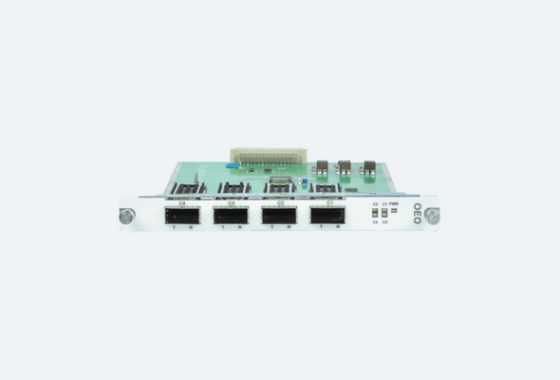

4x100G OEO board has 4 QSFP48 or QSFP+ ports, compatible with 100G and 40G
network applications.
Support wavelength conversion and optical signal amplification.
The optical ports are at the front and power units are at the back, which can
ensure safe use.
Dual power hot backup: support double -48V, double 220V, or one -48V and one
220V power supply.
Simple structure, low power consumption, long lifespan, and low cost.
Easy maintenance and network management are optional.
Technical parameters
|
Function |
Description |
|
Dimension |
1U: 44 mm (H)×442 mm (W)×280 mm (D) |
|
Working wavelength range |
Multi-mode 850nm, single-mode 1260nm~1650nm, CWDM/DWDM |
|
Supported service types |
STM-1/4/6/16/64/256, FE/GE/10GE/40GE/100GE |
|
Service access capability |
Support the OEO (optical-electrical-optical) amplification of at most 16 routes' services under any protocols at the rate of 40G or 100G |
|
3R function |
Support 3R function: re-amplifying), re-timing, re-shaping |
|
ALS function |
Support laser automatic turn-off alarm function. The laser will automatically turn off the emission when it receives no light |
|
Network management |
Support multi-kinds of graphical interface network management, such as SNMP, Web |
|
Optical interface |
LC/UPC |
|
Working temperature range |
-10℃~60℃ |
|
Working humidity range |
5%~95% no condensation |
|
Storage temperature |
-40℃~85℃ |
|
Power supply |
AC: 90 ~ 260V or DC: -36 ~ -72 V (support 1+1 power input backup) |
|
Typical power consumption |
Full configuration<90W |
|
Heat dissipation |
Fan cooling |
|
MTBF |
＞100000 hours |
