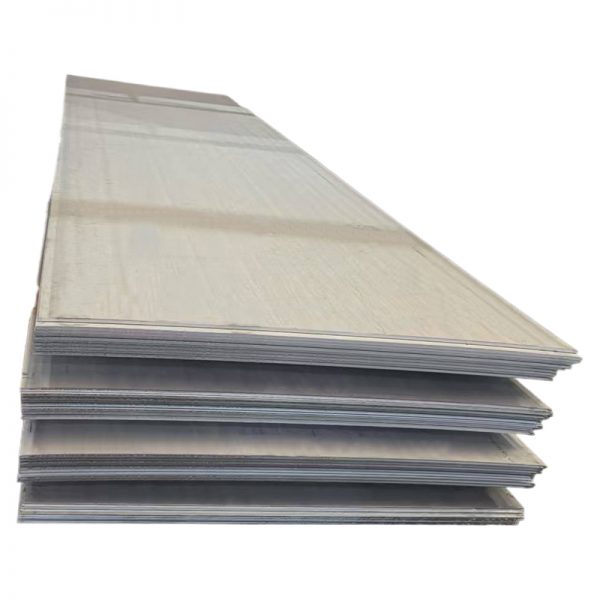

310S Stainless Steel Plate -

Description

Profile

Due to the high content of nickel (Ni) and chromium (Cr), 310S stainless steel has good oxidation resistance, corrosion resistance, acid and alkali resistance. After increasing the content of carbon in austenitic stainless steel, the strength is improved due to its solid solution strengthening effect.

The chemical composition characteristics of austenitic stainless steel are based on chromium and nickel to add molybdenum, tungsten, niobium and titanium, and because of its face-centered cubic structure, it has high strength and creep strength at high temperatures. 310S stainless steel is often used in the manufacture of boiler, steam turbine, industrial furnace and aviation, petrochemical and other parts of the industry.

Product Description

Product	310S Stainless Steel Sheet
Surface Finish	BA, 2B, 4K, 6K, 8K, NO.4, HL, Embossed, Perforated, Pickling white, Polished outside, Polished inside and outside
Technique	Hot Rolled / Cold Rolled
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc
Width	500mm/1000mm/1219mm/1250mm/1500mm/1800mm/2000mm/2200mm/2500mm/3000mm/3500mm, or as required
Length	500mm/1000mm/2000mm/2438mm/2500mm/3000mm/6000mm/8000mm—13000mm, or as required
Thickness	0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0/8.0/10.0/12.0/14.0/16.0—250mm, or as required
Material	201, 202 304,304L,321,316L,316Ti,317L,309S,310S 904L 410,420,430,436L,409L,441,443,444 17-4PH,XM-19 2205, 2750
Color	Standard RAL color: Red, Blue, White, Grey, Brick, etc.
Stock Dimension	Cold Rolled: 0.4-6.0mm10002000mm/ 12202440mm/ 12502500mm/ 15003000mm, or as your request Hot Rolled: 3.0-16.0mm12502500mm/ 15003000mm/ 15006000mm/ 18006000mm/ 20006000mm, or as your request Thick Sheet: 6.0mm-80mmwidthlength, as your request Mirror: 0.4-1.5mm10002000mm/ 12192438mm and other customize size workable Hairline: 0.4-1.5mm10002000mm/ 12192438mm and other customize size workable Color Coating: 0.4-1.5mm10002000mm/ 12192438mm and other customize size workable Sandblasting: 0.4-1.5mm10002000mm/ 1219*2438mm and other customize size workable
Service	OEM, Customized processing service, Customized fabrication by drawings
Processing Type	Cutting, Bending, Stamping, Welding, CNC machining
Cutting Type	Laser cutting; Water-jet cutting; Flame cutting
Protection	1. Inter paper available 2. PVC protecting film available
Application	Costruction Industry/ Kichten Products/ Fabrication Industry/ Home Decoration

Chemical Composition

C	Si	Mn	Cr	Ni	S	P
≤ 0.08	≤1.0	≤ 2.0	24.0～26.0	19.0～22.0	≤ 0.03	≤ 0.045

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥520	≥205	≥40	≤ 217HB;≤ 95HRB

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
9.01	200	14.4	13.8	94
